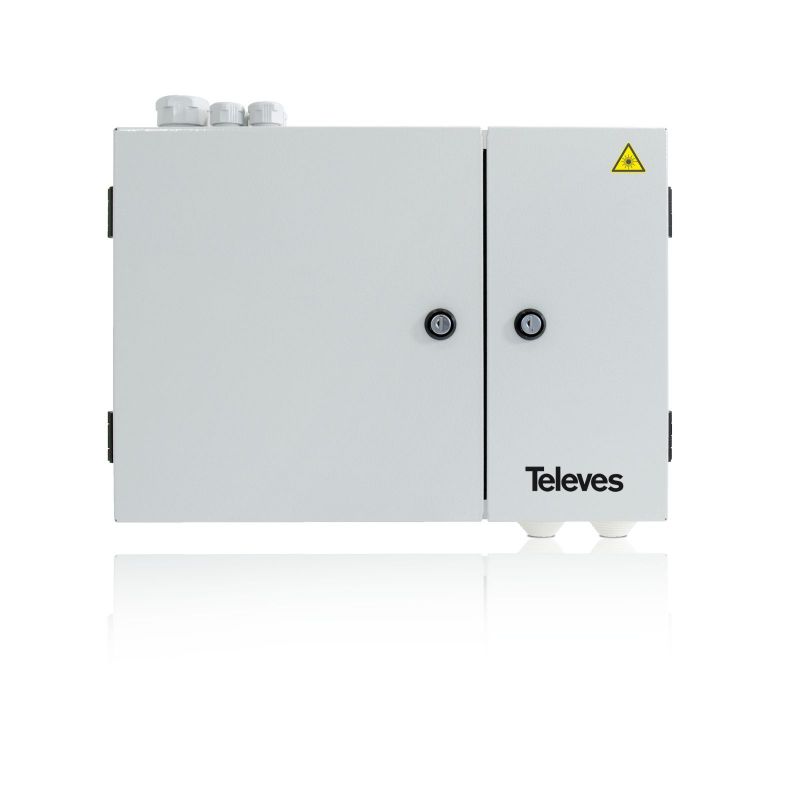

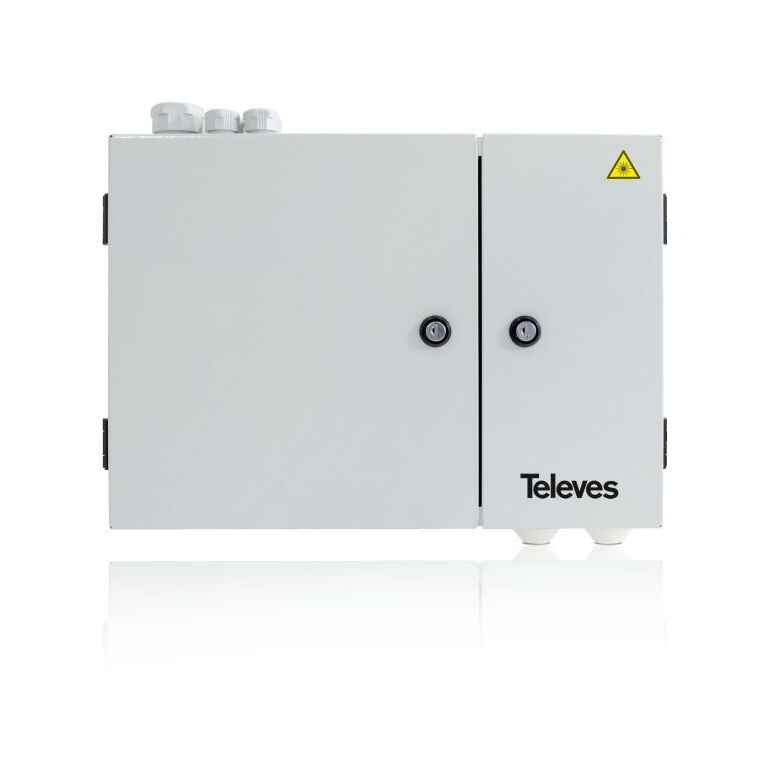

Main Terminal Enclosure 48 connectors Televes

Name: Main Terminal Enclosure 48 connectors Televes
SKU: TELEVES-233002
Availability: InStock

KSh75,974.00

Up to 48 female-female adapters.??Designed to work as a distribution point for optical fibre cables. Commonly used in FTTH projects, where it simplifies the interconnection between the user’s network and the operator’s network (typical RITI installation). Televes 233002

Designed to work as a distribution point for optical fibre cables. Commonly used in FTTH projects, where it simplifies the interconnection between the user’s network and the operator’s network (typical RITI installation).

Highlights
Made of lacquered steel
Independent compartments with door and lock, separated by a panel of up to 48 SC/APC adapters
Equipped with 2 inputs at the bottom for operators and 5 outputs at the top for the building backbone
Manufactured in Europe
?Features
Grey colour (RAL 7035)
A folding tray holder allows working with the fibre trays in the horizontal position
4 independent folding FO trays (book format), with enough capacity to stow up to 12 splices each
Equipped with 2 metal anchors to hold the main core elements, as provided by the FO cables
Includes a PG29 stuffing gland, prepared for an FO cable with 17mm maximum diameter (48 fibres)
Includes 4 PG16 stuffing glands, prepared for an FO cables with 8mm maximum diameter (24/12 and 2 fibres)
Equipped with 2 access rubbers, 50mm-diameter each
