Mast Amplifier 1in (FM/BIII/DAB/UHF) 36dB LTE 5G

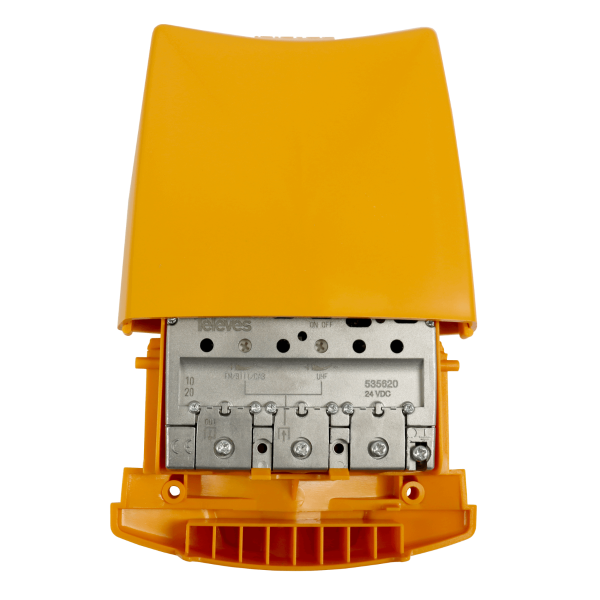

Mast Amplifier 1 Input: FM/BIII/DAB/UHF 36dB LTE 5G Televes 535620
Amplifier to install on the antenna mast, with 1 single input for various terrestrial bands (FM/BIII/DAB/UHF). Adapted to the 2nd Digital Dividend with integrated 5G filter. It is powered at 24Vdc and admits power pass**to feed another preamplifier or active antenna.
Outdoor amplifier for terrestrial television signals, with 36dB of gain and 113dB**V of output. If you want to amplify several bands, you can do it by mixing them beforehand with an outdoor terrestrial mixer.
The assembly of this amplifier is very simple thanks to its EasyF connection system, which does not use connectors. The equipment is protected from the elements as it is inside an ABS plastic case. It includes a plastic tie to attach it to the mast.
**
Mast Amplifier 1 Input (FM/BIII/DAB/UHF) LTE 5G with 36dB of Gain and 113dB?V of Output
What technical specifications does the Televes 535620 Mast Amplifier have?
Bands FM/BIII/DAB/UHF
Frequency margin MHz 88 … 108 174 … 254 470 … 694
Gain dB 15 32 36
Gain adjustment range dB 0 … 20 0 … 20
Max.output level dB?V EN 50083 (-35dB) 122 112 123
DIN 45004B 115 115 116
EN 50083 (-60dB) 112 112 113
Noise figure dB — 5 5
Output level regulation margin V /mA 24 / 80
Max current through inputs OFF mA –
ON 45
Protection Level IP 23
Temperature operat. limits ?C -5 … +45
