Mercury 10KVA /8KW Online Smart UPS
KSh288,000.00
Description

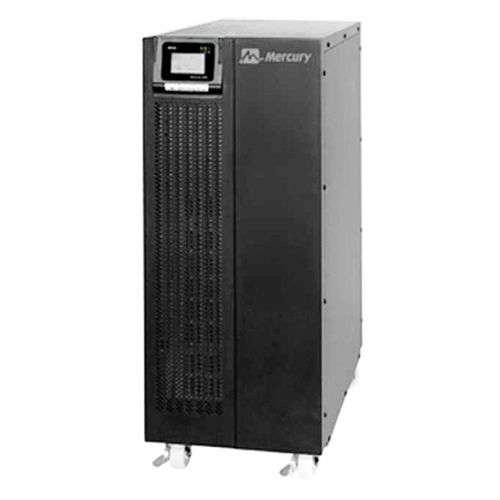

Mercury 10KVA/8KW Online Smart UPS
Mercury 10KVA/8KW Online Smart UPS is a reliable alternative power source. It is your perfect backup in the events of a power outage to keep your devices running.
When there is a power cut, this UPS automatically switches over with zero downtime. Mercury online HP9110C-S 0.8PF protects your electronic equipment from damage due to power outages, surges, and spikes while providing short term battery power during an outage.
Mercury 10KVA/8KW Online Smart UPS Features Automatic Voltage Regulation (AVR), which instantly adjusts high and low voltage fluctuations to safe levels for your electronics, saving battery power for when you need it most during storms and power outages.
Mercury 10KVA UPS Specifications
Power Rating: 10KVA/8KW
UPS Topology: Online Double-Conversion
Input Voltage Range: 176V – 276V
Input Frequency Range: 46Hz – 54Hz (Auto-sensing)
Output Voltage: 220V/230V/240V (Selectable)
Output Frequency: 50Hz/60Hz (Auto-sensing)
Efficiency: ≥ 90%
Crest Factor: 3:1
Waveform: Pure Sine Wave
Battery Type: Sealed Maintenance–Free Lead-Acid
Battery Voltage: 240VDC
Backup Time (Full Load): Approximately 5-10 minutes
Backup Time (Half Load): Approximately 10-20 minutes
Recharge Time: 6-8 hours to 90% capacity
Communication Ports: USB, RS232
Operating Temperature: 0°C to 40°C
Relative Humidity: 0% to 95% (non-condensing)
Audible Noise: <50dB
Dimensions: (H x W x D) 480mm x 250mm x 660mm
Weight: Approximately 55kg
Related products
-
Add to cartDescription
Mercury Elite 3000U Pro 3000VA/1800W Smart Offline UPSMercury Elite 3000U Pro 3000VA/1800W Smart Offline UPS is a reliable alternative power source. It is your perfect backup in the events of a power outage to keep your devices running.
When there is a power cut, this UPS automatically switches over with zero downtime. Mercury Elite 3000 Pro** UPS** protects your electronic equipment from damage due to power outages, surges, and spikes while providing short term battery power during an outage.
Mercury Elite 3000U Pro 3000VA/1800W Smart Offline UPS features Automatic Voltage Regulation (AVR), which instantly adjusts high and low voltage fluctuations to safe levels for your electronics, saving battery power for when you need it most during storms and power outages. Additionally,
UK Plug sockets make for easy-to-use connection of protected equipment. Specifically designed to protect your PC equipment and network connection in harsh power environments, the Backups ensures maximum productivity and work efficiency.
Mercury 3000VA UPS Specifications
Model: Mercury Elite 3000U Pro
Capacity: 3000VA / 1800W
UPS Topology: Smart Offline (Standby)
Input Voltage: 220VAC
Output Voltage: 220VAC ±10%
Output Frequency: 50Hz/60Hz ±1%
Transfer Time: ≤10ms (Typical)
Battery Type: Sealed lead-acid maintenance-free
Battery Quantity: 4 x 12V/9Ah
Recharge Time: 6-8 hours to 90% capacity
Backup Time: Approximately 10-20 minutes (depending on load)
Protection: Overload, short circuit, discharge, and overcharge protection
Audible Alarm: Battery low, overload, fault, and battery replacement
Communication Port: USB
Software: UPSilon2000 (Included)
Operating Temperature: 0°C to 40°C
Humidity: 0% to 90% non-condensing
Dimensions: 415mm x 145mm x 220mm
Weight: 12kg
Certification: ISO9001, CE, RoHSConclusions
The Mercury Elite 3000U Pro is a powerful 3000VA/1800W 3KVA Smart Offline UPS that offers reliable backup power for your critical devices. With its rack mount/tower convertible design, it provides flexibility in installation options. The UPS operates on a 220VAC input voltage and delivers a stable 220VAC output voltage with a frequency of 50Hz/60Hz ±1%. It features a transfer time of less than 10ms, ensuring seamless transition to battery power during power outages.
-
Add to cartDescription
Mercury Online HP930C-S 0.8PF 3000VA/2400W 1/1Phase UPSMercury Online HP930C-S is a reliable alternative power source. It is your perfect backup in the events of a power outage to keep your devices running. When there is a power cut, this UPS automatically switches over with zero downtime.
Mercury Online HP930C-S protects your electronic equipment from damage due to power outages, surges, and spikes while providing short term battery power during an outage. The Mercury Online HP930C-S, Features Automatic Voltage Regulation (AVR), which instantly adjusts high and low voltage fluctuations to safe levels for your electronics, saving battery power for when you need it most during storms and power outages.
Mercury 3KVA UPS Specifications
Model: Mercury Online HP930C-S
Capacity: 3000VA / 2400W
Technology: Online double conversion
Power Factor: 0.8
Input Voltage Range: 160V – 300V
Input Frequency Range: 45Hz – 65Hz
Output Voltage: 220V/230V/240V selectable
Output Frequency: 50Hz/60Hz ± 0.2Hz
Efficiency: ≥ 90% at full load
Battery Type: Sealed, maintenance-free lead-acid
Battery Voltage: 36V
Battery Backup Time: Dependent on load and battery configuration
Recharge Time: 4-6 hours to 90%
Communication Ports: USB, RS232, SNMP
Display: LCD panel for real-time status and parameters
Protection: Overload, short circuit, over-temperature, battery low voltage, surge, and transient protection
Audible Alarm: Provides audible alerts for various conditions
Operating Temperature: 0°C to 40°C
Dimensions: 438mm x 145mm x 220mm
Weight: 14.7kgConclusions
The Mercury Online HP930C-S is a high-performance single-phase UPS with a capacity of 3000VA and 2400W. It utilizes online double conversion technology, ensuring a consistent and reliable power supply for critical equipment. With a power factor of 0.8, it efficiently delivers power to connected devices. The UPS features a wide input voltage range and frequency range, providing flexibility in different power environments. It offers selectable output voltage and frequency options to suit specific requirements.
-
Add to cartDescription
Mercury Online HP960C-S 0.8PF 6KVA/4.8KW 1/1 Phase UpsThe Mercury Online HP960C-S is a single-phase UPS with a capacity of 6KVA (6000VA) and a power factor of 0.8. It offers reliable power protection and is suitable for various applications.
Model: Mercury Online HP960C-S
Capacity: 6KVA (6000VA) / 4.8KW
Power Factor: 0.8
Phase: Single Phase
Topology: Online Double Conversion
Input Voltage Range: 176V – 276V
Frequency Range: 40Hz – 70Hz
Output Voltage: 200/208/220/230/240V (Selectable)
Output Frequency: 50/60Hz (Selectable)
Efficiency: ≥ 89% (AC to AC), ≥ 92% (ECO Mode)
Battery Type: Sealed, Maintenance-free Lead-Acid Batteries
Battery Quantity: 20 x 12V/9Ah
Backup Time: Depends on Load
Recharge Time: 5 Hours to 90% Capacity
Display: LCD Panel for Real-time Monitoring
Communication Ports: USB, RS232, SNMP
Protection: Overload, Short Circuit, Over-temperature, Low Battery Voltage
Audible Alarms: Battery Mode, Battery Low, Overload, Fault
Operating Temperature: 0°C – 40°C
Dimensions: 438mm x 190mm x 340mm
Weight: 30.5kgThe Mercury Online HP960C-S is a high-performance single-phase UPS designed to provide reliable power protection for critical equipment. With a capacity of 6KVA and a power factor of 0.8, it offers ample power to support a range of applications. The UPS utilizes online double conversion technology, ensuring a clean and stable power supply regardless of input voltage fluctuations or disturbances.
-
Mercury 6KVA UPS, 6000KVA Online UPS
KSh280,000.00Add to cartDescription
Mercury 6KVA (6000KVA UPS) Online UPSMercury 6KVA (6000KVA UPS) Online UPS provides power backup for your sensitive equipment. Mercury 6000KVA online UPS is ideal for sensitive equipment like servers, network systems, other IT equipment and similar devices.
When zero tolerance for any break in a power supply is imperative due to the sensitivity of the application, the online UPS is what you need. 6KVA Mercury Online UPS is a perfect balance between top performance, reliability and budget-friendly pricing, the Mercury 6KVA online UPS range has an outstanding rating.
With the Mercury 6kva online UPS, you get that high-rated performance from a 4200W capacity UPS. Mercury 6000KVA UPS rated capacity of 4200W, the Mercury 6KVA online UPS can support multiple office devices. It will deliver up to 20 minutes power backup at half load and some 7 minutes backup at full load.
Powered by 20x 8.2AH 12Vbattery, the Mercury 6KVA online UPS meets the backup requirement for most small office appliances. 6000KVA Mercury UPS is designed for those organisation that doesn’t want power blackout to come between them and making money, 6KVA Mercury UPS offers investors value for their money.
Mercury 6KVA Online UPS specifications
Power 6KVA / 4200W
Voltage range 176 ±5VAC~276 ±5VAC
Frequency 46~54Hz ±0.5Hz, or 56~64Hz ±0.5Hz auto sensing
Input phase Single phase
Power factor **0.98
Voltage range 220VAC ±1%
Output phase Single phase
Frequency 50Hz ±0.2% (battery mode)
THD < 2% (Linear load); < 6% (non-Linear load) Overload 105%~130% 10min turn to Bypass mode, > 130% 1s turn to Bypass mode
Crest factor 3:1 (max)
Waveform Pure sine wave
Transfer time 0ms (AC mode – Battery mode) 0ms (AC mode – Bypass mode)
Efficiency **88%
AC mode 5 cycles turn off inverter, no transfer to Bypass, provide alarm.
Battery mode 5 cycles turn off inverter, provide alarm.
Bypass mode Input fuse blown or break action.
Battery Model 12V sealed lead acid maintenance free
DC voltage 240VDC
Configuration 20x 12V/8.2AH
Backup time 20min (half load) / 7min (full load)
Charge current 1A (standard unit) / 5A (long time unit)
Recharge time 90% capacity after 8hrs charging
Communication Interface RS232; SNMP (optional)
Parallel Port Parallel availability for redundancy and load sharing up to three unit
LCD Indication Input voltage/frequency; battery voltage; output voltage/frequency; load watt/VA value & percent; inverter temperature; operation mode such as on batt or on bypass
LED Indication Green: normal operation; Yellow: warning condition Red: abnormal operation
Noise level ** 55dB
Temperature 0~40**C; 0 ~ 40**C (storage temperature)
Humidity 0~95% (non-condensing)
Altitude < 1500m Weight Net/Gross 89/104kg (standard unit); 34/48kg (long time unit) Dimension (WxDxH) 270 x 570 x 720mm Packaging (WxDxH) 370 x 670 x 940mm Mercury 6KVA Online UPS Nairobi Mercury 3KVA Online UPS dealer Mercury 2KVA UPS price Mercury 1KVA UPS -
Mercury 10KVA UPS, 10000KVA Online UPS
KSh270,000.00Add to cartDescription
Mercury 10KVA (10000KVA UPS) Online UPS | KenyaMercury 10KVA (10000KVA UPS) Online UPS has a power rating of 7000W which can support a significant number of equipment, providing the power backup needed by such sensitive equipment.
Mercury 10KVA Online UPS range is ideal for mission-critical IT equipment like servers, network systems, workstations, PCs, etc. Because they deliver clean quality pure sine wave power, you have reliable power quality to support your sensitive IT equipment.
Mercury 10000KVA online UPS ensures that the zero tolerance for any break in power supply, which is imperative for highly sensitive applications, is what you get. With zero switching time, Mercury 10000KVA online UPS ensures your equipment is kept supplied and running, without service disruptions, at power failure from the grid.
10KVA online Mercury UPS offers a perfect balance between top performance, reliability and budget-friendly pricing, the Mercury 10KVA online UPS range has an outstanding rating.
10000KVA Mercury online UPS systems have continued to support mission critical equipment in many organisations in Kenya The rated capacity of the 10kVA Mercury Online UPS, which is 7000W, can support multiple office devices.
The estimated backup time at half-load is 13 minutes, and that comes down to about 5 minutes backup at full load, with possible extension, optionally. Mercury 10kVA Online UPS is powered by 20 x 8.2AH / 12V internal battery pack. You can extend backup with the optional extension battery pack.
Mercury 10kVA Online UPS specifications from Mtech Networks
Power 10kVA / 7000W
Voltage range 176 ±5VAC~276 ±5VAC
Frequency 46~54Hz ±0.5Hz, or 56~64Hz ±0.5Hz auto sensing
Input phase Single phase
Power factor **0.98
Voltage range 220VAC ±1%
Output phase Single phase
Frequency 50Hz ±0.2% (battery mode)
THD < 2% (Linear load); < 6% (non-Linear load) Overload 105%~130% 10min turn to Bypass mode, > 130% 1s turn to Bypass mode
Crest factor 3:1 (max)
Waveform Pure sine wave
Transfer time 0ms (AC mode – Battery mode) 0ms (AC mode – Bypass mode)
Efficiency **88%
AC mode 5 cycles turn off inverter, no transfer to Bypass, provide alarm.
Battery mode 5 cycles turn off inverter, provide alarm.
Bypass mode Input fuse blown or break action.
Battery Model 12V sealed lead acid maintenance free
DC voltage 240VDC
Configuration 20 x 12V/8.2AH
Backup time 13min (half load) / 5min (full load)
Charge current 1A (standard unit) / 5A (long time unit)
Recharge time 90% capacity after 8hrs charging
Communication Interface RS232; SNMP (optional)
Parallel Port Parallel availability for redundancy and load sharing up to three unit
LCD Indication Input voltage/frequency; battery voltage; output voltage/frequency; load watt/VA value & percent; inverter temperature; operation mode such as on batt or on bypass
LED Indication Green: normal operation; Yellow: warning condition Red: abnormal operation
Noise level ** 55dB
Temperature 0~40**C; 0 ~ 40**C (storage temperature)
Humidity 0~95% (non-condensing)
Altitude < 1500m Weight Net/Gross 92/107kg (standard unit); 36/51kg (long time unit) Dimension (WxDxH) 270 x 570 x 720mm Packaging (WxDxH) 370 x 670 x 940mm Best Online UPS in Kenya Mercury UPS dealer in Nairobi Mercury 6KVA UPS price in Kenya Mercury 650VA UPS Kenya
