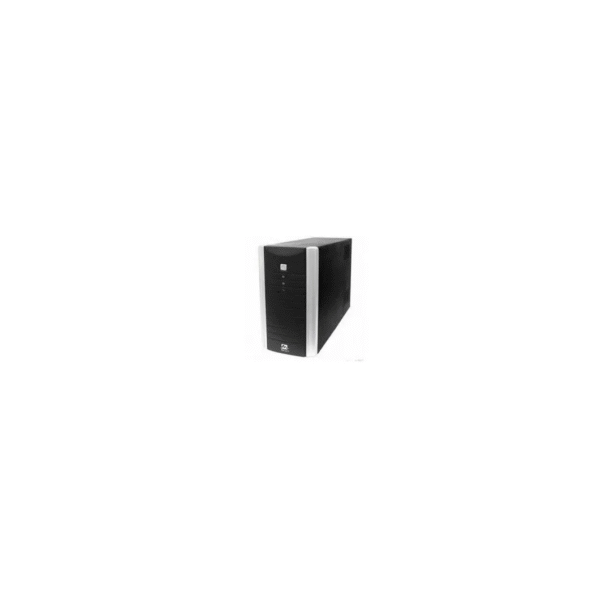

Mercury MPM 2K Online UPS, 2KVA/1.8KW (0.9PF)

Description
Double-Conversion Technology and Performance

The MPM 2K utilizes high-frequency double-conversion online architecture for continuous power conditioning. This technology converts incoming AC power to DC, then back to clean AC output. Consequently, connected equipment receives filtered power regardless of input quality variations.

Furthermore, the system operates with zero transfer time between utility and battery power. The online design eliminates switching delays that could disrupt sensitive equipment. Therefore, servers, networking hardware, and critical systems maintain uninterrupted operation during power fluctuations.

Power Capacity and Load Management

The Mercury MPM 2K provides 2000VA capacity with 1800W real power output through 0.9 power factor design. This configuration supports modern IT equipment with high power factor loads efficiently. Additionally, the system accommodates mixed loads including computers, servers, and telecommunications equipment.

Load monitoring displays real-time power consumption through the integrated LCD interface. The MPM 2K also includes overload protection with automatic bypass switching. Moreover, the system supports short-circuit protection and thermal management for extended operational life.

Battery System and Backup Duration

The MPM 2K incorporates 6 x 7AH/12V sealed lead-acid batteries in 72VDC configuration. These maintenance-free batteries provide extended backup duration based on connected load requirements. Additionally, intelligent battery management optimizes charging cycles and monitors battery health.

Smart charging technology employs multi-stage charging algorithms to maximize battery life. The system also features temperature compensation for optimal charging in varying environmental conditions. Furthermore, automatic battery testing identifies aging batteries before failure occurs.

Input and Output Specifications

The Mercury MPM 2K operates across wide input voltage ranges to accommodate unstable power conditions. The system features wide input voltage range capability for compatibility with varying utility conditions. Additionally, the MPM 2K maintains regulated output voltage regardless of input fluctuations.

Output voltage regulation maintains ±2% accuracy under varying load conditions. The system also provides pure sine wave output for compatibility with sensitive electronic equipment. Moreover, frequency regulation ensures stable 50/60Hz output regardless of input frequency variations.

Communication and Monitoring Features

The MPM 2K includes RS232 and USB communication interfaces for system monitoring and control. These connections enable integration with network management systems and monitoring software. Additionally, the system supports SNMP card installation for advanced network monitoring capabilities.

LCD human-computer interface provides detailed status updates and settings customization. The display shows real-time information including input/output voltages, load levels, and battery status. Furthermore, configurable alarms notify operators of system conditions requiring attention.

Protection Systems and Safety Features

Comprehensive protection systems safeguard both the UPS and connected equipment. The MPM 2K includes surge protection, EMI/RFI filtering, and lightning protection circuits. Additionally, the system monitors for input voltage anomalies and automatically compensates for power quality issues.

Emergency Power-Off (EPO) instantly shuts down the UPS during emergencies. The system also features input phase reversal detection and fan failure alarms. Moreover, thermal protection prevents overheating damage during high-load conditions.

Installation and Environmental Considerations

The Mercury MPM 2K supports tower installation with compact footprint requirements. The system operates efficiently in office environments with minimal noise generation. Additionally, the MPM 2K accommodates various environmental conditions within specified operating ranges.

Cooling systems automatically adjust fan speed based on load and temperature conditions. The system also includes dust filters to maintain internal component cleanliness. Furthermore, the compact design facilitates installation in space-constrained locations.

Ideal Users

The Mercury MPM 2K Online UPS suits specific applications particularly well:

Small data centers – True online double-conversion technology provides zero transfer time for server protection
Network operations centers – 72VDC battery system delivers extended backup time for critical networking equipment
Medical facilities – 0.9 power factor efficiency supports high-efficiency medical equipment with minimal power waste
Financial institutions – RS232/USB communication enables integration with monitoring systems for regulatory compliance
Manufacturing control systems – Wide input voltage range accommodates unstable industrial power conditions
Telecommunications providers – EMI/RFI filtering ensures clean power for sensitive communication equipment
Power Specifications
Capacity: 2000VA / 1800W
Power Factor: 0.9 (leading/lagging)
Technology: True online double-conversion
Transfer Time: 0ms (continuous operation)
Efficiency: >90% at optimal load
Overload Capability: 105-110% for 10 minutes, >130% immediate bypass
Input Characteristics
Voltage Range: Wide input acceptance (specific range software settable)
Frequency Range: 50/60Hz ±10% (±2.5% to ±20% software settable)
Power Factor: >0.98
Input Connection: Single phase with ground
Surge Protection: Built-in lightning and surge protection
EMI/RFI Filter: Integrated noise filtering
Output Performance
Voltage: 220/230/240VAC ±2%
Frequency: 50/60Hz ±0.2%
Waveform: Pure sine wave
Total Harmonic Distortion: <3% (linear load) Voltage Regulation: ±2% (0-100% load) Crest Factor: 3:1 maximum Battery System Configuration: 6 x 7AH/12V sealed lead-acid DC Voltage: 72VDC nominal Battery Life: 3-5 years (25°C ambient) Charging Method: Smart multi-stage charging Temperature Compensation: Automatic Battery Test: Automatic periodic testing Communication Interface Standard Connections: RS232, USB Optional: SNMP card, dry contact interfaces Monitoring Software: Compatible with standard UPS management Remote Control: EPO (Emergency Power Off) Display: LCD with status indicators Alarms: Audible and visual notifications Physical Specifications Form Factor: Tower design Installation: Desktop or floor standing Operating Temperature: 0°C to 40°C Storage Temperature: -15°C to 45°C Relative Humidity: 0-95% non-condensing Altitude: Up to 1000m (derated above) Protection Features Overload Protection: Automatic bypass switching Short Circuit Protection: Output and battery protection Over-temperature Protection: Thermal shutdown Battery Protection: Over/under voltage, over-current Input Protection: Surge, spike, and brownout protection Output Protection: Short circuit and overload
