Mercury Online HP960C-S 0.8PF, 6KVA 4.8KW single Phase UPS

Related products

•

  Mercury 20kva/18kw 3 Phase Online Ups

  KSh590,000.00

  Description
  Mercury 20kva/18kw 3 Phase Online Ups

  Mercury 20kVA 3-Phase in / 3-phase out Online UPS EP20K offers the large UPS capacity a user may want, but also the 3-Phase input-output specification that may be required for some installations.

  Still, the Mercury 3-phase 20kVA online UPS brings advanced features and the superb quality and decent pricing that Mercury UPS products have stood out for. Mercury UPS series offers the best quality-price fit, giving you the opportunity to acquire high performance power backup systems at the best market price.

  The Mercury EP20K 20kVA Online UPS Power rating of 18kW and a battery voltage of 384VDC. It is a high efficiency UPS and suitable for critical installations.

  View the specifications of the 20kVA 3-phase in – 3-phase out Mercury UPS EP20K
  Capacity: 20kVA (kilovolt-ampere)
  Power Rating: 18kW (kilowatts)
  UPS Topology: Online Double Conversion
  Input Voltage: 3-Phase, 380/400/415VAC
  Output Voltage: 3-Phase, 380/400/415VAC
  Frequency: 50/60Hz
  Efficiency: High efficiency at full load and partial load
  Battery Type: External batteries required for extended runtime (not included)
  Communication Ports: RS232, USB, SNMP
  Display: LCD or LED display for status and parameters monitoring
  Protection Features: Overload protection, short circuit protection, surge protection, voltage regulation, frequency regulation, etc.
  Backup Time: Varies depending on the load and battery configuration
  Form Factor: Rack-mount or tower configuration options available



  Output :
  Phase 3 Phase 4 Wire (3ph+N+PE)
  Rated Voltage 380 / 400 / 415VAC
  Rated Power Factor 0.9
  Frequency 50Hz/60Hz ±0.5Hz (Battery Mode)
  50/60 (1±1/2/4/5%)Hz (On-Line)
  Voltage Precision Output Balanceable:±1.0%; Output Non-Balanceable:±3.0%
  THD Linear Load: ≤2.0%; Non-Linear Load: ≤4.5%
  Overload Capability 110% for 60mins; 125% for 10mins; 150% for 1min
  Crest Factor ≥3 : 1
  Waveform Sine Wave
  DC Component ≤500mVDC
  Output Current 24A / 36A / 48A / 72A / 96A (380V – Full Load)
  23A / 35A / 46A / 70A / 94A (400V – Full Load)
  22A / 33A / 44A / 66A / 88A (415V – Full Load)
  Input :
  Rated Voltage 380 / 400 / 415VAC
  Voltage Range Po≤69%: 208±5VAC~478±5VAC
  Po≥69%: 304±5VAC~478±5VAC
  Frequency 40±0.5Hz~70±0.5Hz
  Input Phase 3 Phase 4 Wire (3ph+N+PE)
  THDi Input THD≤1.0%, Linear Load: ≤3.0%
  Input THD≤1.0%, Non-Linear Load: ≤7.0%
  Power Factor >0.99
  Battery :
  Model Sealed Lead Acid Battery (VRLA)
  Configurable Battery 32 (Not included, purchased separately)
  Discharge Current (320VDC) 54A / 81A / 106A / 160A / 213A
  Charge Current (Max) 20/30KVA 40/60/80KVA
  15A 30A
  System :
  Efficiency ≥90% (Line Mode)
  ≥93% 20/30KVA , ≥94% 40/60/80KVA (Battery Mode)
  ≥97% (ECO Mode)
  Wasting ≤3% (Line Mode)
  ≤2% (ECO)
  Noise at 1M <56dB Running Temperature 0~40˚C Relative Humidity 0%RH~95%RH (Non-condensing) Altitude 1000m Output Normal Power Display LCD+LED Breaker/ Fuse 40A / 63A / 80A / 125A / 160A Remote Signaling Dry Contact Communication RS232/RS485/SNMP MTBF Inverter MTBF >50,000 Hours
  Single Modules MTBF >250,000 Hours
  1+1 Expandable Modules MTBF >400,000 Hours
  MTTR The MTTR of Each Single UPS Modules is Lower 30mins
  Dielectric Resistance > 2MΩ (500VDC)
  Dielectric Strength 2820VDC, Leak Current<3.5mA, 1min Vibration Impact Fulfill standard ISTA (International Safe Transmission Association) 1B Transportation Fulfill standard ISTA (International Safe Transmission Association) 1B Degree Of Protection Ip20 Net/Gross Weight (kg) 242/266 Dimension(WxDxH) mm 930 x 700 x 1390 Bypass : Voltage Range 380V 208/266/304±5VAC~399/418/437/475±5VAC 400V 220/280/320±5VAC~420/440/460±5VAC 415V 228/290/332±5VAC~436/457/477±5VAC Frequency Range 50(1±10%)Hz / 60(1±10%)Hz Phase 3 Phase 4 Wire (3ph+N+PE) Overload Capability 125%~170% for 10mins Eco Mode : Voltage Range 380V 304±5VAC~399 / 418±5VAC 400V 320±5VAC~420 / 440±5VAC 415V 332±5VAC~436 / 457±5VAC Frequency Range 50(1±10%)Hz / 60(1±10%)Hz Phase 3 Phase 4 Wire (3ph+N) Model EP20K Capacity 20kVA  Power 18KW Maximum Input Current 40A / 63A / 80A / 125A / 160A

  Add to cart

  Quick View
•

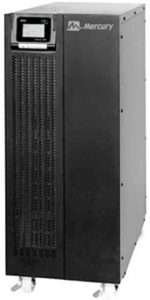

  Mercury 6KVA UPS, 6000KVA Online UPS

  KSh280,000.00

  Description
  Mercury 6KVA (6000KVA UPS) Online UPS

  Mercury 6KVA (6000KVA UPS) Online UPS provides power backup for your sensitive equipment. Mercury 6000KVA online UPS is ideal for sensitive equipment like servers, network systems, other IT equipment and similar devices.

  When zero tolerance for any break in a power supply is imperative due to the sensitivity of the application, the online UPS is what you need. 6KVA Mercury Online UPS is a perfect balance between top performance, reliability and budget-friendly pricing, the Mercury 6KVA online UPS range has an outstanding rating.

  With the Mercury 6kva online UPS, you get that high-rated performance from a 4200W capacity UPS. Mercury 6000KVA UPS rated capacity of 4200W, the Mercury 6KVA online UPS can support multiple office devices. It will deliver up to 20 minutes power backup at half load and some 7 minutes backup at full load.

  Powered by 20x 8.2AH 12Vbattery, the Mercury 6KVA online UPS meets the backup requirement for most small office appliances. 6000KVA Mercury UPS is designed for those organisation that doesn’t want power blackout to come between them and making money, 6KVA Mercury UPS offers investors value for their money.

  Mercury 6KVA  Online UPS specifications
  Power 6KVA / 4200W
  Voltage range 176 ±5VAC~276 ±5VAC
  Frequency 46~54Hz ±0.5Hz, or 56~64Hz ±0.5Hz auto sensing
  Input phase Single phase
  Power factor **0.98
  Voltage range 220VAC ±1%
  Output phase Single phase
  Frequency 50Hz ±0.2% (battery mode)
  THD < 2% (Linear load); < 6% (non-Linear load) Overload 105%~130% 10min turn to Bypass mode, > 130% 1s turn to Bypass mode
  Crest factor 3:1 (max)
  Waveform Pure sine wave
  Transfer time 0ms (AC mode – Battery mode) 0ms (AC mode – Bypass mode)
  Efficiency **88%
  AC mode 5 cycles turn off inverter, no transfer to Bypass, provide alarm.
  Battery mode 5 cycles turn off inverter, provide alarm.
  Bypass mode Input fuse blown or break action.
  Battery Model 12V sealed lead acid maintenance free
  DC voltage 240VDC
  Configuration 20x 12V/8.2AH
  Backup time 20min (half load) / 7min (full load)
  Charge current 1A (standard unit) / 5A (long time unit)
  Recharge time 90% capacity after 8hrs charging
  Communication Interface RS232; SNMP (optional)
  Parallel Port Parallel availability for redundancy and load sharing up to three unit
  LCD Indication Input voltage/frequency; battery voltage; output voltage/frequency; load watt/VA value & percent; inverter temperature; operation mode such as “on batt” or “on bypass”
  LED Indication Green: normal operation; Yellow: warning condition Red: abnormal operation
  Noise level ** 55dB
  Temperature 0~40**C; 0 ~ 40**C (storage temperature)
  Humidity 0~95% (non-condensing)
  Altitude < 1500m Weight Net/Gross 89/104kg (standard unit); 34/48kg (long time unit) Dimension (WxDxH) 270 x 570 x 720mm Packaging (WxDxH) 370 x 670 x 940mm   Mercury 6KVA  Online UPS Nairobi Mercury 3KVA  Online UPS dealer Mercury 2KVA   UPS price Mercury 1KVA   UPS

  Add to cart

  Quick View
•

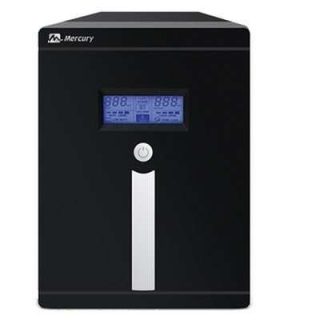

  Mercury Elite 3000U Pro 3000VA UPS, 1800W 3KVA Smart Offline UPS

  KSh45,500.00

  Description
  Mercury Elite 3000U Pro 3000VA/1800W Smart Offline UPS

  Mercury Elite 3000U Pro 3000VA/1800W Smart Offline UPS is a reliable alternative power source. It is your perfect backup in the events of a power outage to keep your devices running.

  When there is a power cut, this UPS automatically switches over with zero downtime. Mercury Elite 3000 Pro** UPS** protects your electronic equipment from damage due to power outages, surges, and spikes while providing short term battery power during an outage.

  Mercury Elite 3000U Pro 3000VA/1800W Smart Offline UPS features Automatic Voltage Regulation (AVR), which instantly adjusts high and low voltage fluctuations to safe levels for your electronics, saving battery power for when you need it most during storms and power outages. Additionally,

  UK Plug sockets make for easy-to-use connection of protected equipment. Specifically designed to protect your PC equipment and network connection in harsh power environments, the Backups ensures maximum productivity and work efficiency.

  Mercury 3000VA UPS Specifications
  Model: Mercury Elite 3000U Pro
  Capacity: 3000VA / 1800W
  UPS Topology: Smart Offline (Standby)
  Input Voltage: 220VAC
  Output Voltage: 220VAC ±10%
  Output Frequency: 50Hz/60Hz ±1%
  Transfer Time: ≤10ms (Typical)
  Battery Type: Sealed lead-acid maintenance-free
  Battery Quantity: 4 x 12V/9Ah
  Recharge Time: 6-8 hours to 90% capacity
  Backup Time: Approximately 10-20 minutes (depending on load)
  Protection: Overload, short circuit, discharge, and overcharge protection
  Audible Alarm: Battery low, overload, fault, and battery replacement
  Communication Port: USB
  Software: UPSilon2000 (Included)
  Operating Temperature: 0°C to 40°C
  Humidity: 0% to 90% non-condensing
  Dimensions: 415mm x 145mm x 220mm
  Weight: 12kg
  Certification: ISO9001, CE, RoHS

  Conclusions

  The Mercury Elite 3000U Pro is a powerful 3000VA/1800W 3KVA Smart Offline UPS that offers reliable backup power for your critical devices. With its rack mount/tower convertible design, it provides flexibility in installation options. The UPS operates on a 220VAC input voltage and delivers a stable 220VAC output voltage with a frequency of 50Hz/60Hz ±1%. It features a transfer time of less than 10ms, ensuring seamless transition to battery power during power outages.

  Add to cart

  Quick View
•

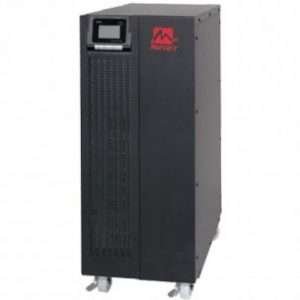

  Mercury 10KVA UPS, 10000KVA Online UPS

  KSh270,000.00

  Description
  Mercury 10KVA (10000KVA UPS) Online UPS | Kenya

  Mercury 10KVA (10000KVA UPS) Online UPS has a power rating of 7000W which can support a significant number of equipment, providing the power backup needed by such sensitive equipment.

  Mercury 10KVA Online UPS range is ideal for mission-critical IT equipment like servers, network systems, workstations, PCs, etc. Because they deliver clean quality pure sine wave power, you have reliable power quality to support your sensitive IT equipment.

  Mercury 10000KVA online UPS ensures that the zero tolerance for any break in power supply, which is imperative for highly sensitive applications, is what you get. With zero switching time, Mercury 10000KVA online UPS ensures your equipment is kept supplied and running, without service disruptions, at power failure from the grid.

  10KVA online Mercury UPS offers a perfect balance between top performance, reliability and budget-friendly pricing, the Mercury 10KVA online UPS range has an outstanding rating.

  10000KVA Mercury online UPS systems have continued to support mission critical equipment in many organisations in Kenya The rated capacity of the 10kVA Mercury Online UPS, which is 7000W, can support multiple office devices.

  The estimated backup time at half-load is 13 minutes, and that comes down to about 5 minutes backup at full load, with possible extension, optionally. Mercury 10kVA Online UPS is powered by 20 x 8.2AH / 12V internal battery pack. You can extend backup with the optional extension battery pack.

  Mercury 10kVA Online UPS specifications from Mtech Networks
  Power 10kVA / 7000W
  Voltage range 176 ±5VAC~276 ±5VAC
  Frequency 46~54Hz ±0.5Hz, or 56~64Hz ±0.5Hz auto sensing
  Input phase Single phase
  Power factor **0.98
  Voltage range 220VAC ±1%
  Output phase Single phase
  Frequency 50Hz ±0.2% (battery mode)
  THD < 2% (Linear load); < 6% (non-Linear load) Overload 105%~130% 10min turn to Bypass mode, > 130% 1s turn to Bypass mode
  Crest factor 3:1 (max)
  Waveform Pure sine wave
  Transfer time 0ms (AC mode – Battery mode) 0ms (AC mode – Bypass mode)
  Efficiency **88%
  AC mode 5 cycles turn off inverter, no transfer to Bypass, provide alarm.
  Battery mode 5 cycles turn off inverter, provide alarm.
  Bypass mode Input fuse blown or break action.
  Battery Model 12V sealed lead acid maintenance free
  DC voltage 240VDC
  Configuration 20 x 12V/8.2AH
  Backup time 13min (half load) / 5min (full load)
  Charge current 1A (standard unit) / 5A (long time unit)
  Recharge time 90% capacity after 8hrs charging
  Communication Interface RS232; SNMP (optional)
  Parallel Port Parallel availability for redundancy and load sharing up to three unit
  LCD Indication Input voltage/frequency; battery voltage; output voltage/frequency; load watt/VA value & percent; inverter temperature; operation mode such as “on batt” or “on bypass”
  LED Indication Green: normal operation; Yellow: warning condition Red: abnormal operation
  Noise level ** 55dB
  Temperature 0~40**C; 0 ~ 40**C (storage temperature)
  Humidity 0~95% (non-condensing)
  Altitude < 1500m Weight Net/Gross 92/107kg (standard unit); 36/51kg (long time unit) Dimension (WxDxH) 270 x 570 x 720mm Packaging (WxDxH) 370 x 670 x 940mm Best Online UPS in Kenya Mercury UPS dealer in Nairobi Mercury 6KVA UPS price in Kenya Mercury 650VA UPS Kenya

  Add to cart

  Quick View
•

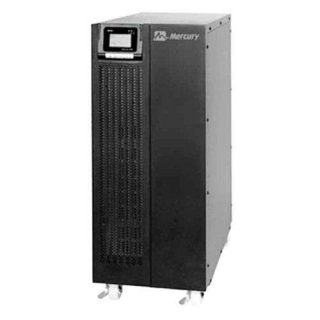

  Mercury 10KVA /8KW Online Smart UPS

  KSh288,000.00

  Description
  Mercury 10KVA/8KW Online Smart UPS

  Mercury 10KVA/8KW Online Smart UPS is a reliable alternative power source. It is your perfect backup in the events of a power outage to keep your devices running.

  When there is a power cut, this UPS automatically switches over with zero downtime. Mercury online HP9110C-S 0.8PF protects your electronic equipment from damage due to power outages, surges, and spikes while providing short term battery power during an outage.

  Mercury 10KVA/8KW Online Smart UPS Features Automatic Voltage Regulation (AVR), which instantly adjusts high and low voltage fluctuations to safe levels for your electronics, saving battery power for when you need it most during storms and power outages.

  Mercury 10KVA UPS Specifications
  Power Rating: 10KVA/8KW
  UPS Topology: Online Double-Conversion
  Input Voltage Range: 176V – 276V
  Input Frequency Range: 46Hz – 54Hz (Auto-sensing)
  Output Voltage: 220V/230V/240V (Selectable)
  Output Frequency: 50Hz/60Hz (Auto-sensing)
  Efficiency: ≥ 90%
  Crest Factor: 3:1
  Waveform: Pure Sine Wave
  Battery Type: Sealed Maintenance–Free Lead-Acid
  Battery Voltage: 240VDC
  Backup Time (Full Load): Approximately 5-10 minutes
  Backup Time (Half Load): Approximately 10-20 minutes
  Recharge Time: 6-8 hours to 90% capacity
  Communication Ports: USB, RS232
  Operating Temperature: 0°C to 40°C
  Relative Humidity: 0% to 95% (non-condensing)
  Audible Noise: <50dB Dimensions: (H x W x D) 480mm x 250mm x 660mm Weight: Approximately 55kg
