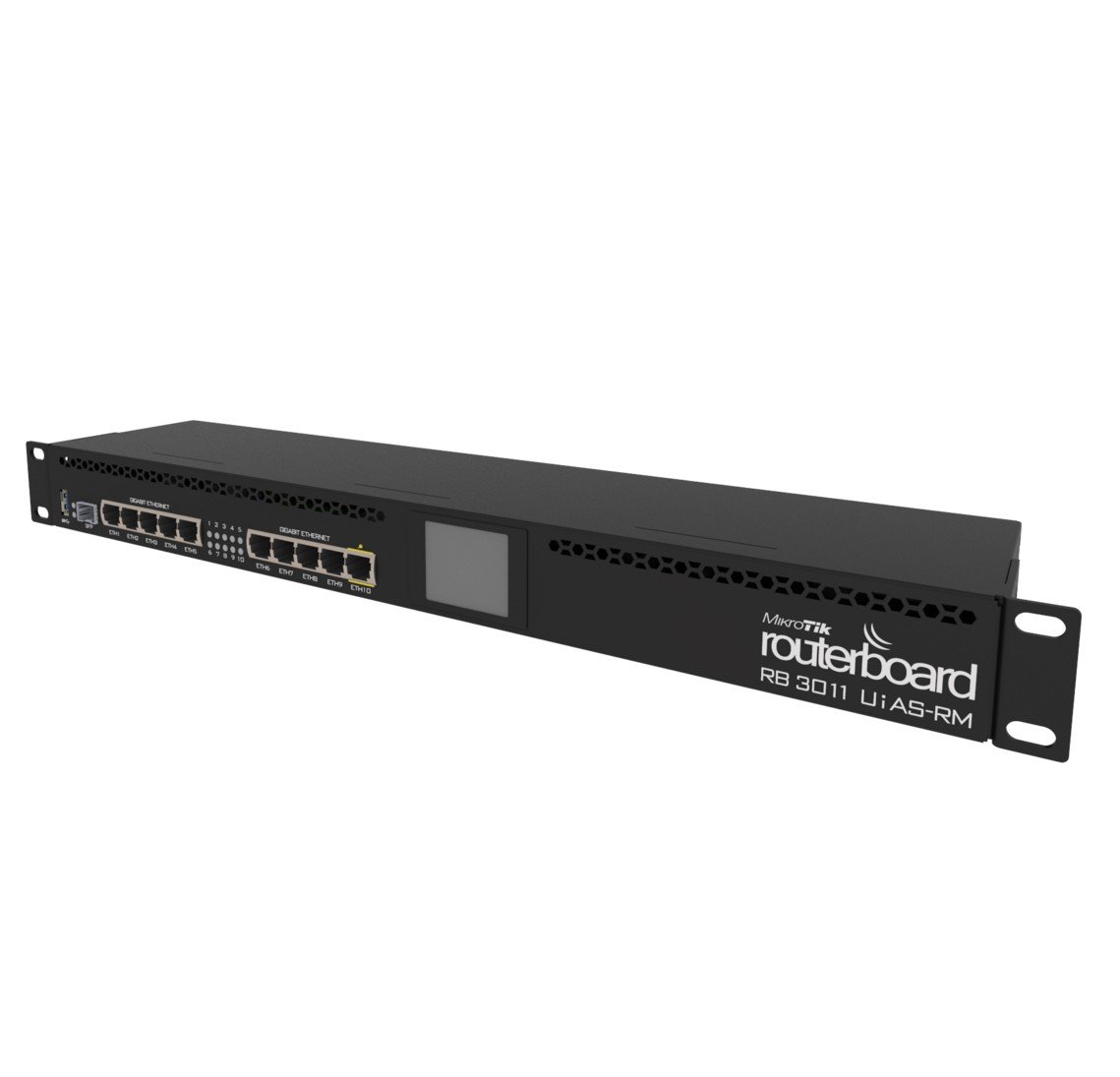

MikroTik RB3011UiAS-RM Ethernet Router (RB3011UIAS-RM)

MikroTik RB3011UiAS-RM Ethernet Router
1U Rackmount, 10x Gigabit Ethernet, SFP, USB 3.0, LCD, PoE Out on Port 10, 2×1.4GHz CPU, 1GB RAM, RouterOS L5

The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.

RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.

Powering
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 10-30 V
Max power consumption: 30 W
Max power consumption without attachments: 10 W
FAN count: Passive
PoE in: Passive PoE
PoE in input Voltage: 10-30 V
PoE-Out
PoE-out ports: Ether10
PoE out: Passive PoE
Max out per port output (input 18-30 V): 600 mA
Max total out (A): 600 mA
Ethernet
10/100/1000 Ethernet ports: 10
Fiber
SFP ports: 1
Peripherals
Serial console port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB 3.0 type A
Max USB current (A): 1
Other
PCB temperature monitor: Yes
Voltage Monitor: Yes
Certification & Approvals
Certification: CE, EAC, ROHS
IP: IP20
