Mikrotik RB912R-2ND-LTM&R11E-4G wireless access point 100 Mbit/s Black Power over Ethernet (PoE)(RB912R-2ND-LTM&R11E-4G)

Weatherproof wireless access point with a built in cellular modem

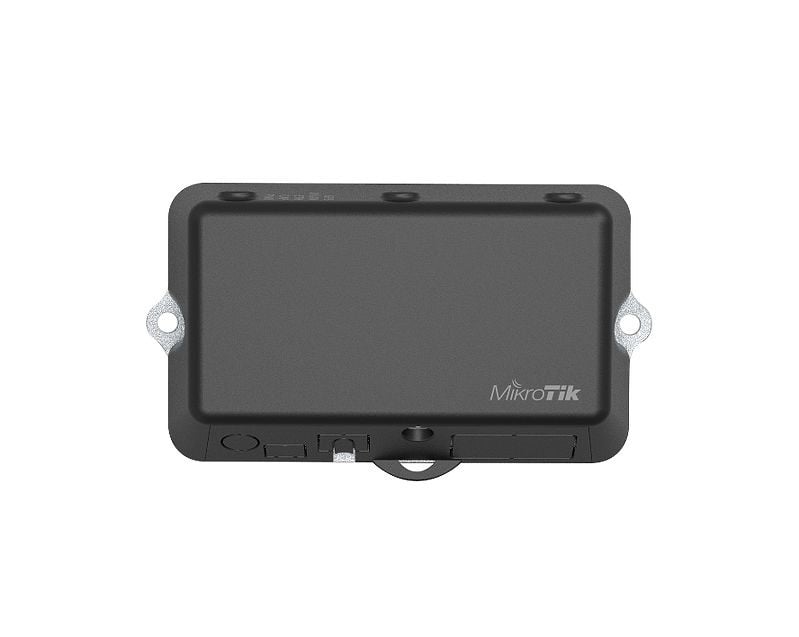

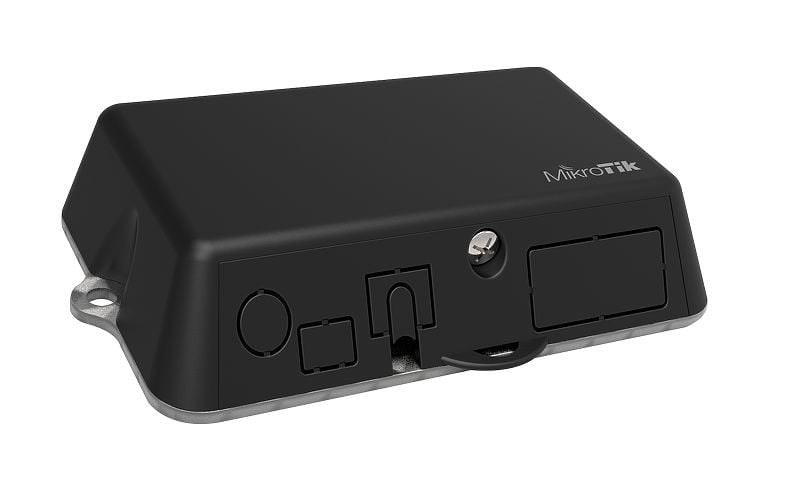

The LtAP mini 4G kit is a small weatherproof wireless access point with a built in cellular modem that supports 4G (LTE) connectivity on LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).

10/100 Ethernet LAN port

Connect to the LtAP mini?s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini 4G kit also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.

Special enclosure with a wall mounting kit

LtAP mini 4G kit has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. To use GPS an external GPS antenna is required, order separately (product code GPSANT).

Two internal antennas

The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.

Built in GPS module

Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.

Additional Product Notes
Maximum data transfer rate: 100 Mbit/s
Wi-Fi data rate (max): 54 Mbit/s
Ethernet LAN data rates: 10,100 Mbit/s
