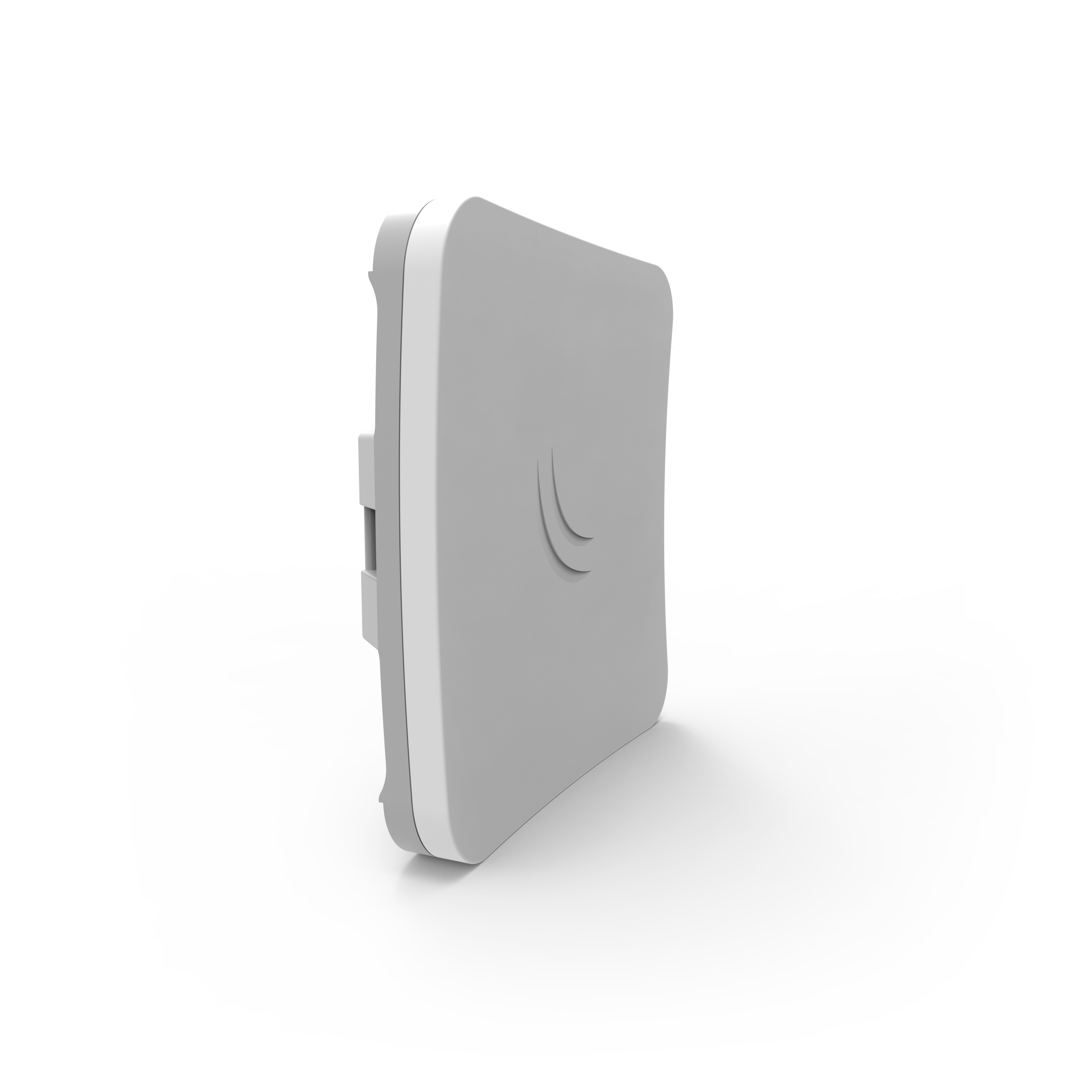

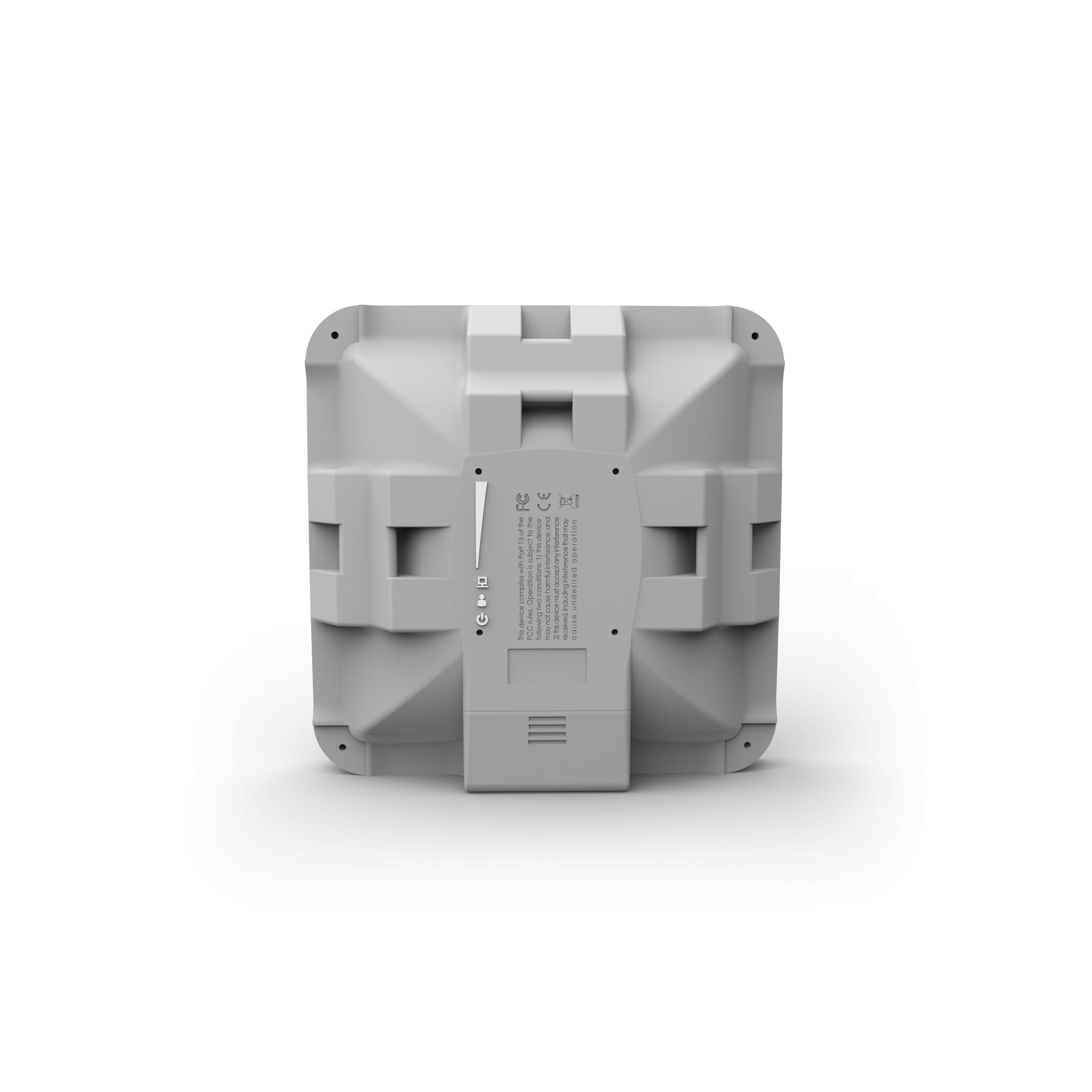

MikroTik SXTsq Lite2
Low-cost small-size 10dBi 2.4GHz dual chain integrated CPE/Backbone
The SXTsq Lite2 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite2 retains a 10 dBi antenna like the SXT Lite2, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced – the SXTsq is two times thinner. Send purchase questions Specifications Support & Downloads Gallery Specifications Details Product code RBSXTsq2nD Architecture MIPSBE CPU QCA9533 CPU core count 1 CPU nominal frequency 650 MHz Dimensions 129 x 129 x 34 mm RouterOS license 3 Operating System RouterOS Size of RAM 64 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100’000 hours at 25C Tested ambient temperature -40°C to 70°C Suggested price $39.00 Powering Details Number of DC inputs 1 (PoE-IN) Max power consumption 5 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 10-30 V Wireless specifications Details Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 10 Wireless 2.4 GHz chip model QCA9533 Wireless 2.4 GHz generation Wi-Fi 4 Ethernet Details 10/100 Ethernet ports 1 Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS IP IP54 Wireless specifications 2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 30 -100 11MBit/s 30 -93 6MBit/s 30 -94 54MBit/s 26 -80 MCS0 30 -94 MCS7 25 -75 Included parts 24V 0.38A power adapter Metal ring (one) PoE injector The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.. Related products QM-X $3
