Mini-splitter DTT-SAT EasyF 2D 4dB Televes

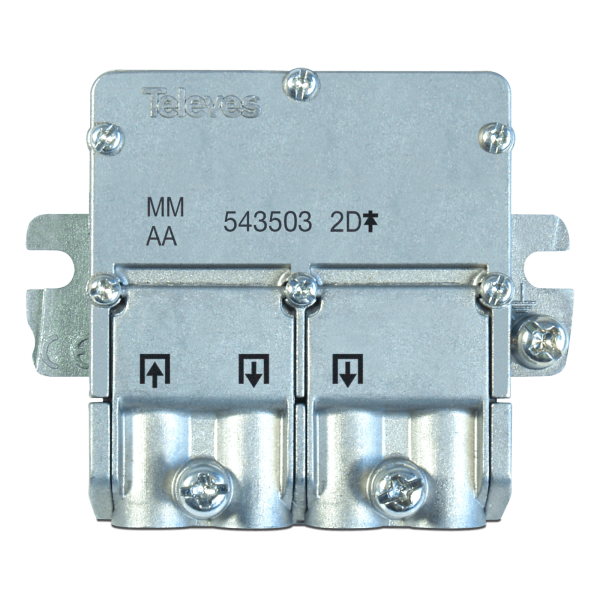

Televes 2-way Mini-splitter 543503
Televes presents the new model of Mini distributors. This model represents a new design and manufacture of SMATV devices. These small size distributors means that the dimensions of the registers where they will be installed will be reduced. It incorporates improvement in its electrical behavior and reduces the effect of impulsive noise.
This distributor works in the frequency range 5 to 2400MHz, making it suitable for both DTT and SAT signals. It has a maximum attenuation loss of 4.3dB in terrestrial frequencies and 4dB in satellites.
Its connection system “EasyF” facilitates the installation, saving time and money since it does not need connectors. The easyF connection is made directly with the bare coaxial cable, also reducing losses.
Suitable for outdoor installation also inside the Televes Mini series box.
Mini-splitter 543503 by Televes with 2 outputs and low attenuation, designed for terrestrial and satellite television signals.
What are the main characteristics of the Televes 543503 mini-delivery box?
Class A Shield.
Robotic Manufacturing and absence of welds that improve the electromagnetic behavior and ensure maintenance features over time.?
Dimensions: 57x47x13mm.
EasyF connection system: easy to install, savings on mounting.
Made of Zamak, high shielding.
Outstanding reliability: automated manufacturing using new generation micro-components.
Improves through losses.
Outstanding electrical behaviour: impulsive noise reduction.
Grounding screw provided.
DC pass from the outputs to the input.
What technical specifications does the Televes 543503 mini-delivery box have?
Frequency range MHz 5-2400
5-862 950-2400
Number of outputs 2
Through loss dB 4,3 4
Tap loss >15
DC Pass (max.) mA 300 (Out?In)
?
Advantages of the EasyF connection system
Real time savings: speeding the installation is possible without the need for coaxial cable termination. Furthermore, there is no need for screwing the connectors on the device, which is sometimes difficult when there is little room
Connection reliability: the clamp holding the cables prevents the coaxial cable to come off
Cost savings: no additional connectors are required (neither F nor IEC)
Space optimization: inputs and outputs are always on the same side of the device to prevent coaxial cables from bending, and to make working inside cabinets and register boxes easier
Very easy three-step mounting: only screwing and unscrewing the covers is required to connect both cables:
Unscrew the device’s cover to access the connection
Insert the previously stripped coaxial cables
Close the cover and screw to ensure connection
Related products
-
Read moreTELEVES Nevoswitch 17x17x8 CASCADE 17 In 8 Out c/w Output Earth Bar Only 2
Year Warranty *Special Order! NCNR – Check Lead Time* Highlights:
10 dB Low Gain (LG) / High Gain (HG) switch for the attenuation of the
satellite input signal for each 8-user group Remote power feeding using VL
Current circulation between all inputs and cascades Compatible with
return-channel applications European design, quality, and manufacturing Main features: Very compact Made of zamak Input and output
colour identification Available ECO mode Selector switch to shift between cascade
and terminal modes 12 V power supply Low power consumption -
Read moreTELEVES Nevoswitch 9x9x16 CASCADE 9 In 16 Out c/w Output Earth Bar Only 2
Year Warranty *Special Order! NCNR – Check Lead Time* Part of the range of 9 input multiswitches
(8 satellite polarities + Freeview), available in 8, 12, 16, 24 and 32 user
outputs. Expand the number of users by cascading two or more units. Small and
compact design to provide an easy and quick installation. The range includes a 9x line amplifier with
25 dB average gain for Satellite inputs and 27 dB gain for Terrestrial with
DC pass. 75 ohms switch included to
load the unit (standalone) or not (cascade configurations). Highlights: Radiation immune thanks to its
zamak made chassis. All switch references are valid for standalone, star or
cascade configuration. Selectable IF gain (+10 dB) for each group or 8 users
to balance the output signals. Multiple powering options: mains and line
powered. ECO mode: the overall consumption is reduced as the number of users
decreases. Main features: Small sized
design: Make the most of space to accomodate more TV subscribers. Use the
same multiswitch in either star/cascade or standalone configuration.
Independent amplification of every feed (8 satellite plus Freeview). Multiple
powering options: mains and line powered. Adjustable gain and equalization to
achieve the best performance for every system’s requirements. -
Read moreTELEVES Euroswitch 9x9x32 CASCADE 9 In 32 Out c/w Output Earth Bar Only 2
Year Warranty *Special Order! NCNR – Check Lead Time* Compact multiswitch equipped with 9 inputs
(one terrestrial and 8 for two satellites, each with its four polarities) and
32 user outputs. Thanks to its great
compactness and its optimized electronic design, it presents very low through
and tap losses. This allows to reduce the number of amplifiers needed in the
cascade and to obtain a better balanced signal in the users, even in large
collective installations. Can be used
as a terminal (star topology) or as a cascade by using a simple switch. In
addition, it incorporates a second switch that actives the TForce technology,
which automatically adjusts the terrestrial signal and keep it constant
despite variations in the reception. RED compliant Main Features: High shielding (A class) thanks to its
manufacture in Zamak Versatile: selector switch to shift between cascade and
terminal modes Low consumption under normal conditions. In addition, ECO mode
reduces consumption as the number of connected users decreases Wide 12-18V
power supply range, making it compatible with most existing systems Current
circulation between all inputs and cascades Input and output colour identification -
Read moreTELEVES 13x13x12 CASCADE Multiswitch 13 In 12 Out c/w Output Earth Bar Only 2
Year Warranty *Special Order! NCNR – Check Lead Time* This unit can be used as a cascade element
since it has 13 outputs to connect to other switches and increase the number
of users. This range of products has been designed with the ECO system: as
the number of users decreases, the power consumption of the system will
decrease as well. Gain in the FI band can be selected individually for each
group of 8 users to provide a balanced output. -
Read moreTELEVES Euroswitch 9x9x24 CASCADE 9 In 24 Out c/w Output Earth Bar Only 2
Year Warranty *Special Order! NCNR – Check Lead Time* Compact multiswitch equipped with 9 inputs
(one terrestrial and 8 for two satellites, each with its four polarities) and
24 user outputs. Thanks to its great
compactness and its optimized electronic design, it presents very low through
and tap losses. This allows to reduce the number of amplifiers needed in the
cascade and to obtain a better balanced signal in the users, even in large
collective installations. Can be used
as a terminal (star topology) or as a cascade by using a simple switch. In
addition, it incorporates a second switch that actives the TForce technology,
which automatically adjusts the terrestrial signal and keep it constant
despite variations in the reception. RED compliant. Main Features: High shielding (A class) thanks to its
manufacture in Zamak Versatile: selector switch to shift between cascade and
terminal modes Low consumption under normal conditions. In addition, ECO mode
reduces consumption as the number of connected users decreases Wide 12-18V
power supply range, making it compatible with most existing systems Current
circulation between all inputs and cascades Input and output colour identification
