MiniKom Broadband Amplifier (FM-BIII-UHF-FI) LTE 5G

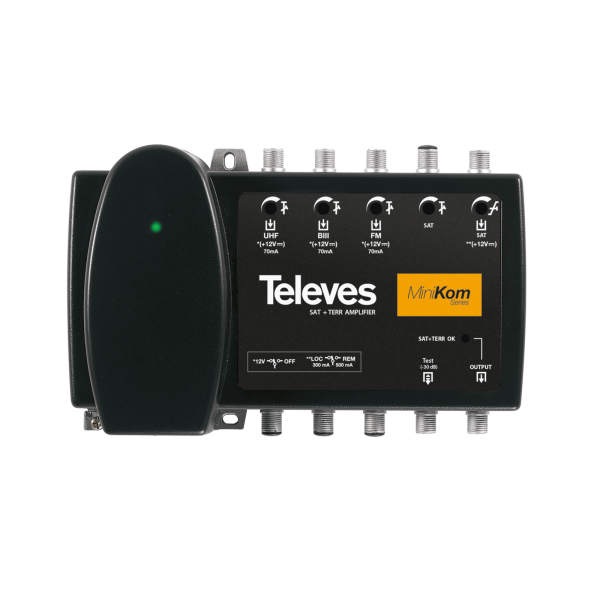

Broadband Amplifier MiniKom 4 inputs (FM-BIII-UHF-FI) LTE 5G Televes 539620
MiniKom broadband amplifier with 4 inputs (FM-BIII-UHF-FI) and 1 output, adapted to the 2nd Digital Dividend with integrated LTE 5G filter.
Central with separate amplification that guarantees the absence of interferences between inputs. This amplifier offers a maximum gain of 40dB (approx.), With 0-20dB attenuators on each input. The maximum supported output level is 114dB**V for Terrestrial and 124dB**V for Satellite.
This amplifier has a switchable current pass (ON/OFF) for powering preamps or BOSS systems, as well as selection of the LNB power supply: local (V-low) or remote.
MiniKom broadband amplifier of 4 inputs (FM-BIII-UHF-FI) with integrated 5G LTE filter
What are the main characteristics of the Central MiniKom Televes 539620?
Amplificaci?n separada que mejora el nivel de salida sin provocar interferencias entre bandas
Atenuadores de ganancia en cada entrada (0-20 dB), con tecnolog?a de diodos PIN
Alto nivel de salida
Chasis de alto blindaje, fabricado en Zamak
Conectores F
Ecualizador de FI
LED indicador de se?al en salida
Switch de selecci?n de la alimentaci?n de LNB: local (V-baja) o remota
Switch para alimentaci?n de preamplificadores o sistemas BOSS
Salida de test (-30 dB)
Atornillable en pared
What technical specifications does the Central MiniKom Televes 539620 have?
Inputs UHF BIII FM IF
Frequency Margin MHz 470-694 174-254 88-108 950-2150
Gain dB 39 ? 3 35 ? 3 17 ? 2 35 ? 3 (950Mhz.)
41 ? 3 (2150Ghz.)
Input attenuation range dB 0 – 20
Equalisation range dB — 0-15
Input/Output return losses dB >10 >10
Noise figure dB 7 < 6 < 9 10
Max. Output level (DIN45004B)
IMD3 (2ch ?60dB) dB?V. 117
114 > 113
> 113 > 113
> 110 —
(EN50083)
IMD3 (2ch ?35dB) — 124
Max. Input line power supply Vdc 12
mA 70 70 70 300*
Total input DC mA 300*
(12Vdc)
Power supply LNB
(REMOTE) mA — 500
Power supply V~ 220 – 230
Max. Current mA~ 100
Consumption W 8,2
Operating temperature ?C -5 to +45
Protection Index IP 20
