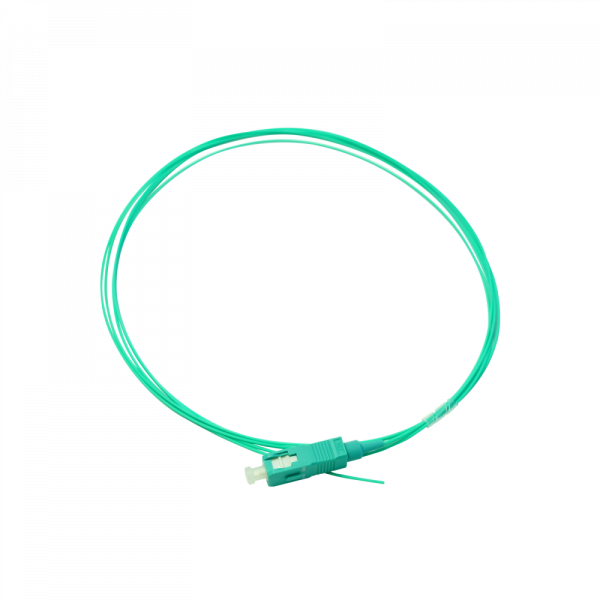

Multimode Fiber Optic Pigtail 0.9mm Simplex SC/PC LSFH 2m
Simplex Multimode Fiber Optic Pigtail and Length 2m
This fiber optic cable allows the transmission of an optical signal from one device to another separated from each other by a distance of 2 meters.
This fiber optic pigtail is used to connect one end via SC/PC connector and the other end to splice to the main cable fiber. Its cover is halogen-free LSFH, suitable for interiors.
This pigtail comes with a free end and the green cable is halogen free.
Technical Specifications of the Simplex Multimode Fiber Optic Pigtail and Length 2m
?
Fiber core type ? Multi-mode (ITU-T-G.651.1)
Optical fiber type category ? OM3
Fiber core diameter ?m 50
Fiber cladding diameter ?m 125
Coating buffer diameter ?m 250
Outer sheath Diameter mm 0.9
Outer sheath Material ? LSFH
Blocking jelly ? No
Insertion losses in connector 1 dB < 0.3
Return losses in connector 1 dB > 30
Optical connector type 1 ? SC
Polishing type (Optical connector 1) ? PC
Minimum bending radius mm 4.5
Operating temperature ?C -20 … 70
