Multimode Fiber Optic Pigtail OM4 0.9mm Simplex SC/PC LSFH 2m
OM4 Singlemode Pigtail with SC/PC connector from Televes
This fiber optic pigtail allows the transmission of optical signal from one device to another, separated from each other by a distance of 2 meters.
This fiber optic pigtail is used to connect one end using the SC/PC connector and the other end to splice to the fiber of the main cable. Its 900**m cover is LSFH halogen-free, suitable for indoors.

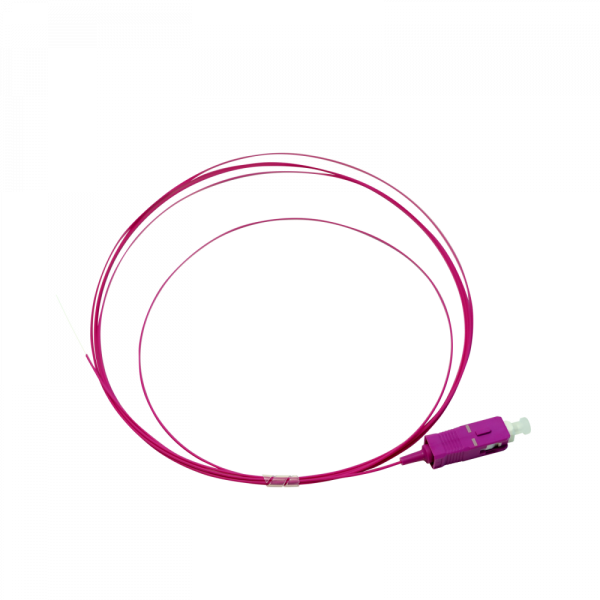

This pigtail comes with a free end and the cable in magenta, the cable type is multimode OM4 ITU-T G.651.1.
Technical Specifications of the OM4 Single-mode Pigtail with SC/PC connector from Televes
?
Fiber core type ? Multi-mode (ITU-T-G.651.1)
Optical fiber type category ? OM4
Fiber core diameter ?m 50
Fiber cladding diameter ?m 125
Coating buffer diameter ?m 250
Outer sheath Diameter mm 0.9
Outer sheath Material ? LSFH
Blocking jelly ? No
Insertion losses in connector 1 dB < 0.3
Return losses in connector 1 dB > 30
Optical connector type 1 ? SC
Polishing type (Optical connector 1) ? PC
Minimum bending radius mm 4.5
Operating temperature ?C -20 … 70
