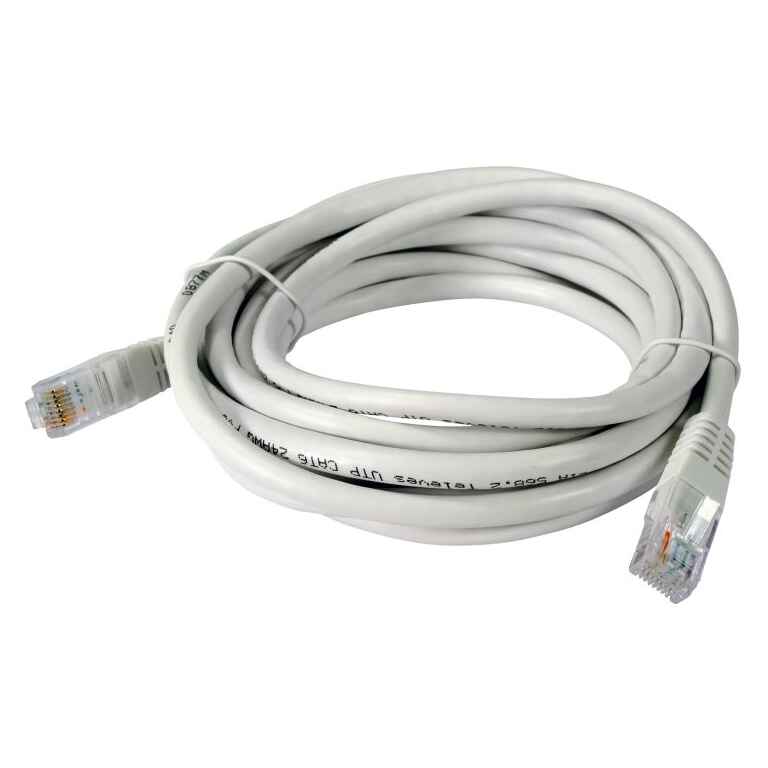

Network Cable RJ45 U/UTP Cat 6 Cu PVC 2m White Televes
Network Cable RJ45 U/UTP Cat 6 Cu PVC 2m
White Televes
Preconnected data patch cord with RJ45
connector at each end. It is made of a Category-6 data cable, U/UTP type,
with a flexible copper inner conductor 24 AWG and outer sheath made of white
PVC. 2m
Highlights
Category-6 data cable
U/UTP Unfoiled UTP Cable
Flexible copper inner conductor (24AWG)
Compatible with PoE/PoE+ (Power over Ethernet) technology, allowing the
cable to power network devices
Main features
PE (Polyethylene) copper conductor insulation, 0.96 mm diameter
White PVC (polyvinyl chloride) outer sheath, 0.62 mm thick and 5.7 mm
diameter
72% nominal speed
RJ45 connectors with gold plated connector ends
Discover
Data cable category Cat 6 complies with the standard for Gigabit Ethernet
and it is backwards compatible, with the standards of the inferior categories
(Cat 5/5e and Cat 3). Category 6 evolves over category 5E, allowing to
achieve transmission frequencies of up to 250 MHz (in each pair) and 1 Gbps
of throughput. It includes characteristics and specifications to avoid
crosstalk and noise. This type of data cable can be used in 10BASE-T,
100BASE-T and 1000BASE-T (Gigabit Ethernet) compliant systems.
They are characterized for:
Comply with TIA/EIA-568B.2-1
Crucifix type padding
Transfer rate up to 1Gbps
Frequency range of up to 250 MHz
Includes rip cord to make it easier to strip the cable
Nominal impedance of 100 ohms
Maximum resistance per conductor below 117 ohms/Km
The RJ45 is a connector commonly used in structured cable networks. With up
to 8 connection pins, it is adequate both for data networks (8 pairs), as
well as telephone networks (2 pairs). It is usually used in networks
compliant with standards TIA/EIA-568-B.
Specifications
Type
U/UTP
Class
Cat 6
Conductor Material Flexible copper
Ø (mm) 0.18 ± 0.008
Conductor type AWG 24
Conductor isolation Material Polyethylene
Ø (mm) 0.96 ± 0.05
Filler Crucifix Yes
Outer sheath Material Polyvinyl chloride (PVC)
Ø (mm) 5.7 ± 0.2
Thickness (mm) 0.62 ± 0.05
Color White
Nominal impedance Ω 100 ± 15
Max. conductor resistence Ω/Km < 117
Nominal velocity % 72
Working voltage V 300
FREQUENCY ATTENUATION NEXT PS-NEXT ELFEXT PS-ELFEXT RETURN LOSS
(MHz) (dB/100m)
1 4.0 65.0 62.0 63.3 60.3 19.0
4 4.2 63.0 60.5 51.2 48.2 19.0
8 5.9 58.2 55.6 45.2 42.2 19.0
10 6.6 56.6 54.0 43.3 40.3 19.0
16 8.3 53.2 50.6 39.2 36.2 18.0
20 9.3 51.6 49.0 37.2 34.2 17.5
25 10.5 50.0 47.3 35.3 32.3 17.0
31,25 11.7 48.4 45.7 33.4 30.4 16.5
62,5 16.9 43.4 40.6 27.3 24.3 14.0
100 21.7 39.9 37.1 23.3 20.3 12.0
200 31.7 34.8 31.9 17.2 14.2 9.0
250 35.9 33.1 30.2 15.3 12.3 8.0
image | https://adishnetservices.com/wp-content/uploads/2023/11/network-cable-rj45-uutp-cat-6-cu-pvc-2m-white-televes-300×300.jpg?wpId=82587 |
---|---|
Manufacturer | TELEVES |
Brand |
