Network Termination Register with removable frame for…
KSh30,524.00

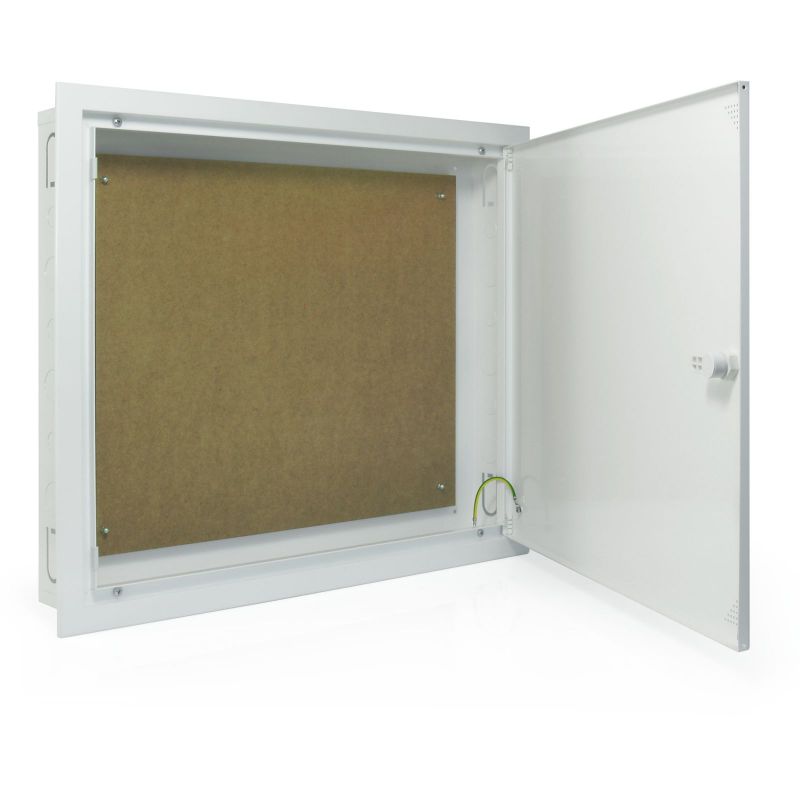

Designed to house the equipment separating the user’s network from the community’s. Specified to meet the ICT2 requirements and designed to be placed in the NTE, it works as a enclosure that houses the different technologies; can be manipulated by the user.**Televes 546701
Data/Coaxial/fibre Terminal Enclousure (RTR).?Coaxial, data, telephone and optical fibre cable.
Designed to house the equipment separating the user’s network from the community’s. Specified to meet the ICT2 requirements and designed to be placed in the NTE, it works as a enclosure that houses the different technologies; can be manipulated by the user.
Highlights
Robust: made of steel.
Simplifies on-site installation: equipped with a front frame, separated from the chassis
Pre-marked inputs for an easy opening: 16 inputs for 32mm-tube and 16 inputs for 20mm-tube
Perforated door for better ventilation with an ABS locking tab (can be manually operated by the user)
Features
Lacquered white
Equipped with a lock to avoid external manipulation
Interchangeable door (left or right hinge)
MDF board for product bolting (dimensions: 520x420x12mm)
Chassis with lateral tabs that allows its fixing on the wall while the mortar is being applied
Includes a ground connection between the door and the chassis
Specifications
Reference 546701
???Registro??? ??Register??? Material Acero / Steel
Espesor material / Material thickness mm 1.5 ? 0.4
X, Y, Z
armaz?n / framework + puerta / door (mm)
?
640 x 540 x 5
?
X, Y, Z marco / frame (mm) 600 x 500 x 80
Color Blanco / White
?Tablero interior?? Interior board?? Material Tablero de fibras de densidad media /Medium Density Fibreboard (MDF)
X, Y, Z (mm) 520 x 420 x12
Color Marr?n / Brown
?Acceso para tubos? ?Pipe access? ? 32 mm 16
? 20 mm 16
Toma de tierra Grounding ? Si / Yes
Peso Weight kg 9
