Nevoswitch 5 x 5 x 5 with F connector and 8dB bypass
Nevoswitch 5-way, 5-way and 5-way

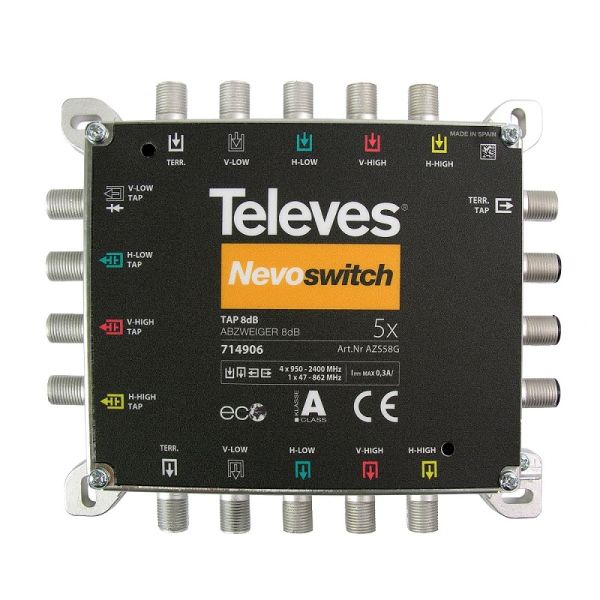

The Televes shunt 714906 is a 5-input, 5-output, 5-lead Nevoswitch drivetrain with F connectors and 8dB bypass losses that allows you to cascade your television signal.
The Nevoswitch 714906 allows the passage of electric current (DiSEqC, USALS), in addition to having low passages.
This wand complements the NevoSwitch range in order to expand the installation to a greater number of users optimizing the signal that would reach each one. Thanks to the driplines we can segregate the signal of a line towards the users leaving passing the general circulation of the line.
The Televos Nevoswitch 714906 is a 5-input, 5-output and 5-lead derivative with losses of 8 dB.
What technical features does the 714906 wrapper have?
Losses in derivation 8dB.
Reduced size and compact design.
Zamak chassis that makes them immune to radiation.
Allows the passage of electric current (DiSEqC, USALS).
Low step losses.
Low consumption ECO mode.
What technical specifications does the 714906 wrapper have?
Referency / Art. Nr. ?714906 / AZS58G
Frequency range ?MHz ?SAT 950-2400
?RF 47 … 862
Loss of passage ?dB ?SAT 3,5 ? 0,8
?RF 3,5 ? 0,4
Derivation losses ?dB ?SAT 8 ? 1,5
?RF 8 ? 1
Isolation ?dB ?H/V >25
?Usuarios
Current flow Entrada – Salida / Salida – Entrada
Total maximum consumption ?mA –
Operating Temperature ??C?? ?5?+45 ?C
Index of protection ?IP??? ?20
Weight ?g?? 400
?Dimensions ?mm?? ?137x120x30
