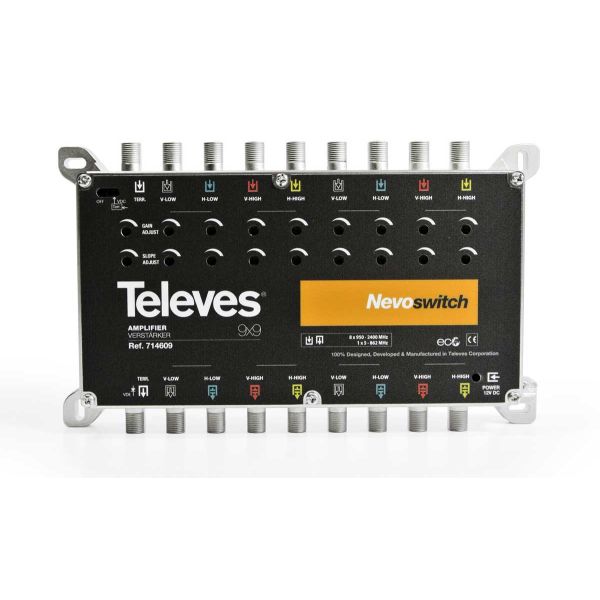

Nevoswitch Amplificator 9×9 “F” MATV/FI 27/25dB
Amplificador Nevoswitch 9×9 “F” MATV/FI 27/25dB. Ref. 714609 de Televes.
Estos dispositivos complementan la gama anterior de MSW de forma que se consigue ampliar la instalaci**n a un mayor n**mero de usuarios optimizando la se**al que le llegar**a a cada uno.
En este amplificador de 9 entradas (8 + Terrestre) mediante el switch, podemos activar/desactivar el paso de corriente para la alimentaci**n de preamplificadores, antenas BOSS.
Destaca por:
??? Chasis de zamak que los hace inmunes a las radiaciones.
??? Sistema escalable para topolog?as en estrella y cascada.
??? Regulaci?n independiente del nivel de salida a cada usuario (salvo gama QUAD Compatible).
??? Modo ECO de bajo consumo. Dispone de sistema ECO por el que el consumo de la instalaci?n se reduce a medida que disminuye el n?mero de usuarios conectados.
?Caracter?sticas:
? ? Reducido tama?o y dise?o compacto.
??? Configurables.
??? Amplificaci?n independiente de l?neas.
??? M?ltiples opciones de alimentaci?n (Jack, l?nea VL, entrada o salida terrestre y conectores usuario)
??? Regulaci?n independiente del nivel en cada salida
?
