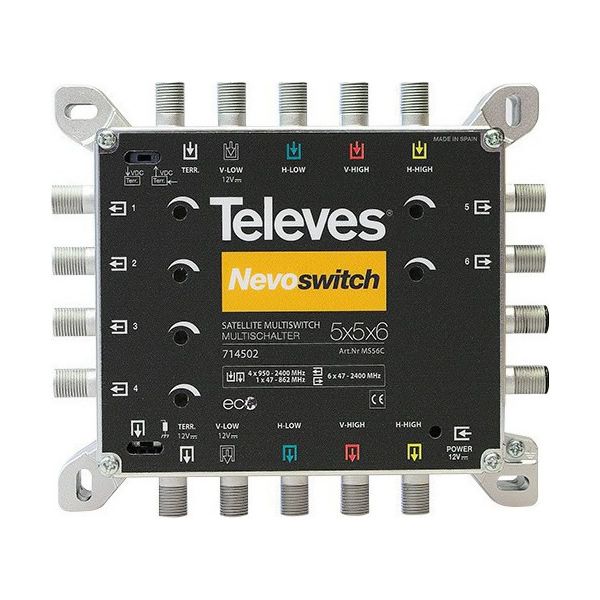

Nevoswitch 5 inputs outputs x 5 x 6 floor “F” Terminal. Ref: TEL714502. This is a new generation in the distribution of FI based mainly on a switch, which may be located in both Horizontal and Vertical, which we call cascade. It can be set from 4-16 FI entries using only one type of switch.
12 dB potentiometer on each output**to improve the level individually. It has a switch to feed terrestrial previous or the passage of current.
Made of**zamak, it is**small in size and compact.**It has**color identification**both at the input and at the output.
The multiswitch has an**ECO mode**to reduce consumption, as well as a switch to change its use between cascade and star.
The**power supply**can be done through the satellite receiver autonomously, so no power supply is necessary, or with the power supply Ref. 732101 (Power Supply 12V-0.8A), which is sold separately.
Nevoswitch Technical Specifications 5 inputs x 5 outputs x 6 plant “F” Terminal/Cascade
Characteristics:
Reduced size.
Configurable.
Independent amplification of lines.
Multiple feeding options.
Independent regulation.
?
Type
?
?
5x5x4
Frequency range
MHz
SAT
950 … 2200 / 2400
TERR
47 … 862
Input level
dB?V
SAT
105
TERR
92
Through losses
dB
SAT
1.5 ? 3 / 4
TERR
2
Tap losses.(2)?1..8 /
9..16 / 17..24 /
25..32
dB
SAT
1(1)?/ – / – / –
TERR
2 / – / – / –
Isolation
dB
H/V
>30
Users
>25
DC pass
?
In-Out / Out-In
Max. total consump
mA
PSU?(3)
40
SAT STB(4)
35
Temp. range.
?C
?
?5 … +45 ?C
Protection level
IP
?
IP20
