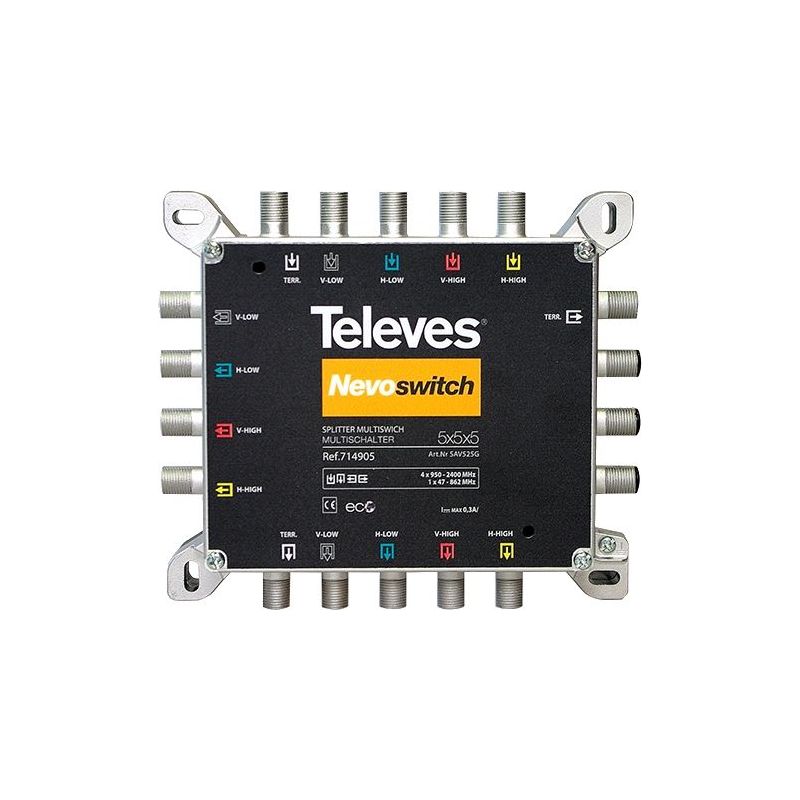

Nevoswitch Splitter 5x5x5 4/4dB Televes 714905
KSh17,628.00
CONFIGURABLE ELEMENTS FOR BETTER SIGNAL ADJUSTMENT
RANGE OF 5 WIRE CASCADABLE MULTISWITCHES
EUROPEAN QUALITY, DESIGN AND MANUFACTURE
CONFIGURABLE ELEMENTS FOR BETTER SIGNAL ADJUSTMENT
Highlights:
Chassis made of zamak: radiation inmune.
Suitable for star/cascade system configurations.
Independent Output Level adjustment (except QUAD compatible units).
Low consumption ECO mode.?Thanks to the ECO system, the consumption decreases as?the number of users is reduced.
Main Features:
Small size and compact design.
Cascadable and terminal configuration in a single reference.
Independent line-amplifier level adjustment.
Multiple powering options?(Jack, VLow, Terrestrial Input/Output and user outputs)
Independent output level adjustment.
Specs
Reference? ?714905
?Type
5X5X5
?Frequency margin
?MHz
?SAT 950-2400
?TER 47-862
?Input level ?dB?V ?SAT ?EN50083-3 / IM35dBc -?
?TER? DIN 45004-B? –
?Maximum gain ?dB ?SAT? ?-
?TER? ?-
?Equalizer ?SAT? ?-
?TER? ?-
?Through losses ?SAT? 4 ? 1
?TER? ? ?4 ? 1?
?Tap losses?1 ?SAT A2? –
B2? –
?TER Typ.? –
?IN-OUT isolation ?SAT? >25
DC Pass ?mA ?LNB/TER Input max.? ?250
?A Total? ?-
Powering ?Vdc?? -?
DC Pass ?? In-Out / Out-In 3?
Total maximum consumption mA? ?Power Supply 12Vdc (PWR)?? –
?Receiver (12/18V)? –
?Temperature range ??C?? -5…+45?C?
?Protection Index ?IP??? ?IP20
?Weight? ?g?? 400
?Dimensions ?mm?? ?140x120x30
