Next MultiSwitch-14×16 (one terrestrial and 12 for 3 satellites, each with its four polarities)

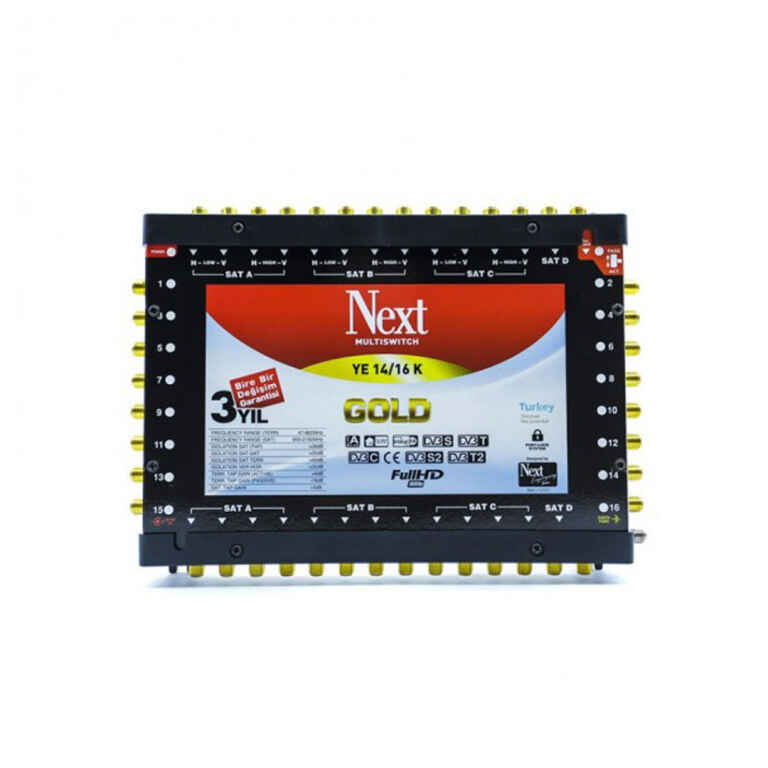

Next YE-14/16 The Cascading / Satellite Multiswitch

Apartments and Residential Villas Satellite Distribution System
3 Satellites +1 for one Frequency 1 Antenna or 1 Camera & Terrestrial
Broadcasting Feature
4K, FullHD, DVB-S2, DVB-S, DVB-T2, DVB-T, DVB-C
Satellite, Terrestrial, and Cable Signal Support, 1 Input

Made in Turkey

Operating Frequency (SAT): 950-2150 MHz
Operating Frequency (TER): 47-862 MHz
Max. Output Power: 100 dB**V
Insulation SAT (TAP): ** 39dB
Insulation SAT- SAT: ** 35dB
Insulation SAT-TERR: ** 40dB
SAT TAP Gain: +5dB
TERR TAP Gain (Active-Passive): +6dB / -18dB
DiseQ C Version: DiseQ C 1.0 / 2.0
Current (For Each Subscriber Output): 47 mA Horizontal (H) 32 mA Vertical
(V)
Working Frequency (SAT): 950-2150 MHz
Working Frequency (TER): 47-862 MHz
Max. Output Power: 100 dB**V
Isolation SAT (TAP): ** 39dB
Isolation SAT- SAT: ** 35dB
Isolation SAT-TERR: ** 40dB
SAT TAP Gain: +5dB
TERR TAP Gain (Active-Passive): +6dB / -18dB
DiseQ C Version: DiseQ C 1.0 / 2.0
