Description

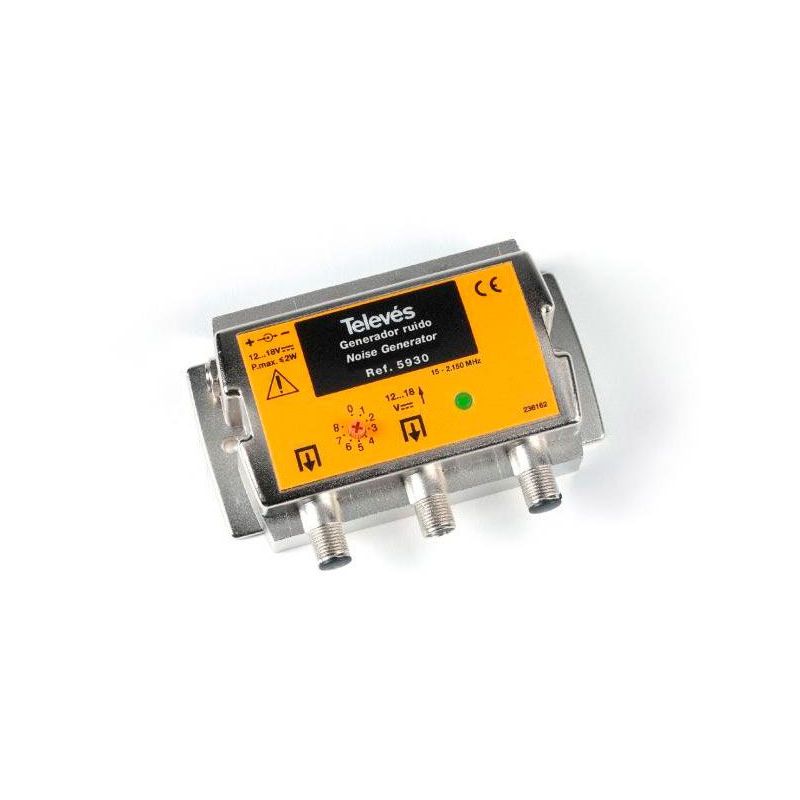

A device designed to carry out attenuation and flatness testing in F.I. satellite?installations with no entry signal, connected to a Telev?s field strength meter.

Equipped with a thumbwheel allowing the output level to be varied by 10 ? 2?dB in 6 steps.

Specifications
Reference? ?593001
?Frequency range MHz 5 … 3,000
?Maximum output level dB?V 80 ? 3 (3 MHz)
?Output regulation dB 0 … 10
?Powering Vdc 12 … 18
?Consumption W 2
?Dimensions (W x H x D) mm 98 x 65 x 27
