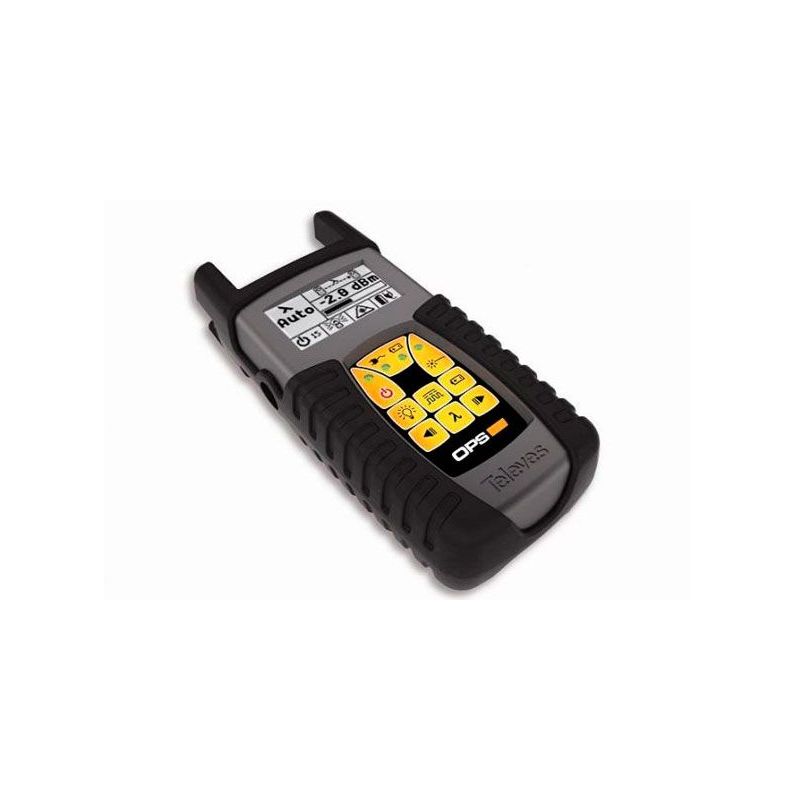

OPS3L Televes Triple Light Generator
KSh340,252.00
Covering three wavelengths (1310, 1490, and 1550nm), the OPS-3L will meet the requirements of just about every application you might encounter. Pairs with the H-Series System Analyzers and automatically measures your optical plant loss.
Covering three wavelengths (1310, 1490, and 1550nm), the OPS-3L will meet the requirements of just about every application you might encounter. Pairs with the H-Series System Analyzers and automatically measures your optical plant loss.
Features
?User-selectable power (0dBm to -8dBm).
The laser can be disabled for adjustment work.
Signal modulation.
Automatic ID: Seamlessly pairs with Televes? H-Series System Analyzers and automatically detects the wavelength.
Power-saving mode with automatic shut off.
Specifications
Reference? ?2340
?Screen? ?LCD 128?64 px
?Languages Universal
?Wavelengths nm 1310, 1490, 1550
?Modulation 270Hz, 1kHz, 2kHz
Automatic ID (H-Series)
?Tolerance nm ?20
?Laser Fabry P?rot
?Power dBm 0 to -8
(in 1dBm steps)
?Short term stability (15 min.) dB ? 0,1
?Long term stability (2 hours) dB ? 0,3
?Power
?Battery type Li-Ion 7.4 V
?External power Vdc 12
?Consumption (max.) W 12
Autonomy h 26
