Optical amplifier with 1 input and 1 output 234221 from Televes

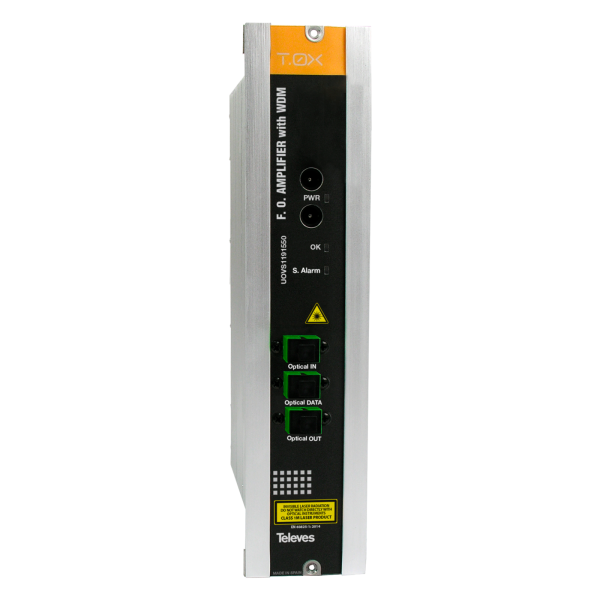

Televes optical amplifier 234221
The optical amplifier 234221 of Televes is a module that amplifies the optical signal of 1550nm, generating an output optical power of 19dBm.
Equipped with WDM, it has 1 input of 1310 / 1490nm with which it multiplexes the 1550nm amplified signal, offering 1 output 1310/1490 / 1550nm, for use in a GPON header.
Based on YEDFA technology (fiber doped with Erbium and Iterbio), it offers high gain, greater optical power and a low noise factor.
Televes amplifier 234221 amplifies the optical signal of 1550nm, generating an optical output power of 19dBm.
What technical characteristics does the 234221 amplifier have?
Includes WDM for RF multiplexing Overlay with GPON signals
Input range from -10 to + 10dBm
Leds status indicators
Optical amplification for RF over fiber service (RF Overlay) in GPON networks
Indicated to cover large distances
SC / APC connectors
What technical specifications does the 234221 amplifier have?
Optics Number of ports
1 RF Overlay @ Optical IN
1 GPON @ Optical DATA
1 (GPON + RF Overlay) @ Optical OUT (COM)
Work wavelength
nm
1310 ? 20 @ Upstream
1490 ? 20 @ Downstream
1530 … 1565 @ RF Overlay
RF Overlay Input
dBm -10 … +10
RF output power overlay
dBm 19
Figure of noise
dB 5 (Pin = 0 dBm @ 1550 nm)
Insertion loss (1310 & 1490nm)
dB <1
Return losses
dB> 40
C / N
dB 51
CSO
dB> 65
CTB
dB> 65
general
Supply voltage Vdc 24
Max consumption mA current ~ 250
Max power consumed W 6
Optical connectors Type SC / APC
Operating temperature ?C / ?F -5 … + 45 / + 23 … + 113
IP protection index 20
