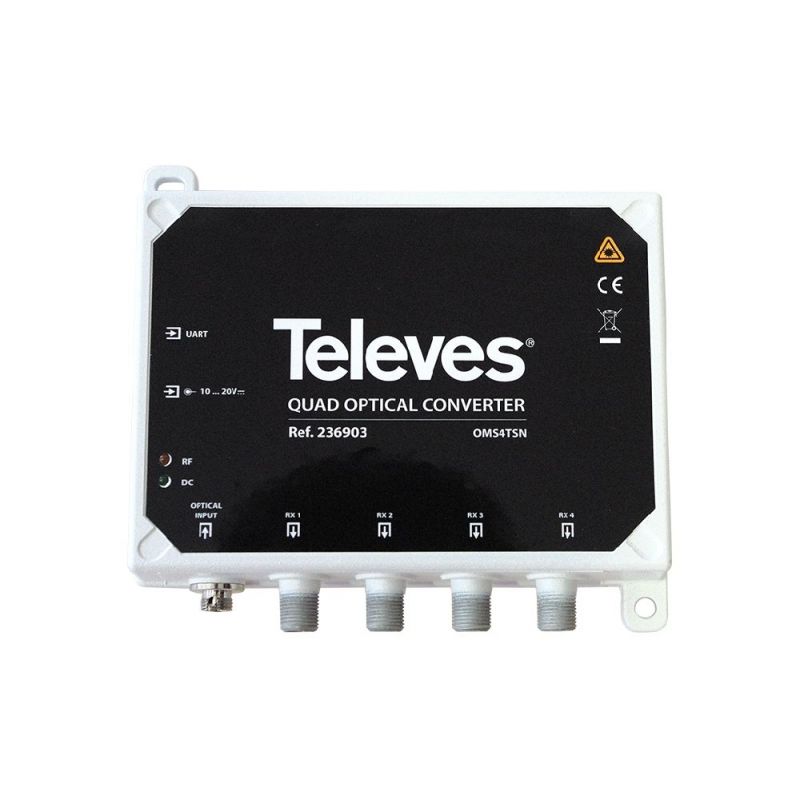

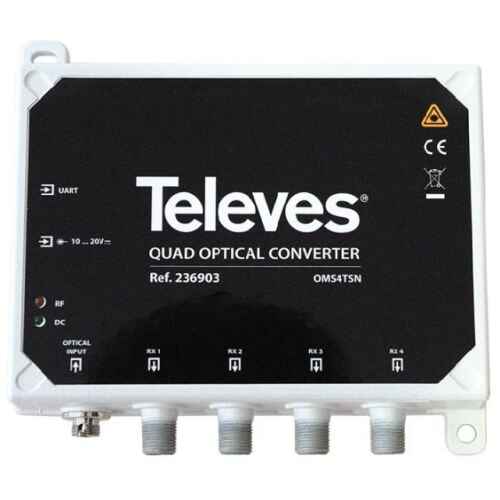

Name: Optical converter Quad RF + FM / DAB / UHF-IF Televes | +254720548999
SKU: TELEVES-236903
Price: 83902.00 KES
Availability: InStock

SAT receiving devices (IF) and DAB / DVB signals via fiber optics and coaxial delivered as SAT (IF) in QUAD format (4 output polarities + terrestrial)

Connectorization input FC / PC and singlemode fiber.
Local or remote power by any of the outputs.
Ref. 236901 (QUAD) replicated in the outputs, the function of a standard LNB QUAD.

Complement of optical LNB systems (ref.2353, ref.236801) that recovers the original RF signal, delivering four independent outputs. In each the terrestrial signal and the TVSAT signal are tuned by the combination of tone of 22kHz and continuous voltage (13-18V).

Specs
Ref. 236903 = OMS4TSN
Salida RF
HF-Ausgang Satellite ?
Horizontal High Band ? MHz 1100 – 2150 >15.5V + 22KHz
Vertical High Band ? MHz 1100 – 2150 <14.5V + 22KHz Horizontal Low Band ? MHz 950 - 1950 >15.5V
Vertical Low Band ? MHz 950 – 1950 <14.5V Return Loss ? dB > 10
Nominal Impedance ? ? 75
Gain Variation Across Band ? dB S 7
Terrestrial Rejection ? dB 30
Typical Outputs Levels ? dB?V 70 *
FM/DAB/DTT ?
RF Frequency Range ? MHz 88 – 790
FM 88 – 108
DAB174 – 240
DTT 470 – 790
Return Loss ? dB > 10
Nominal Impedance ? ? 75
Gain Variation Across Band ? dB S 5
Satellite Rejection ? dB 20
Typical Outputs Levels N? Multiplexes dB?V FM/DTT
1 76
6 72
?General ?Dimensions mm 129 x 117 x 27
?Weight gr 330
