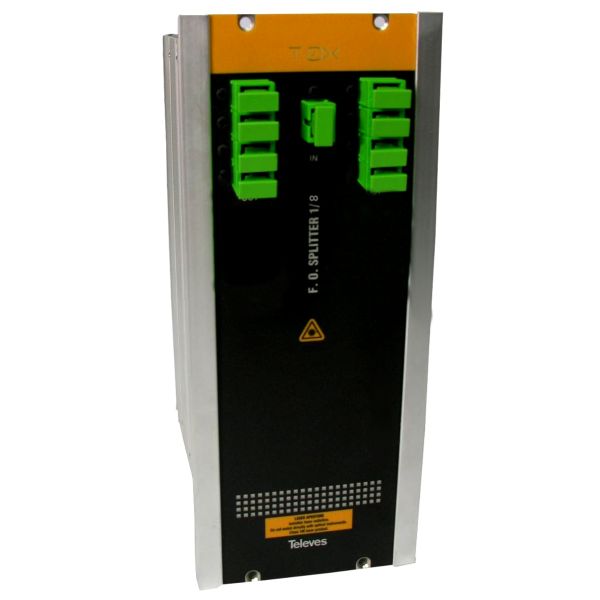

Optical deliveryman 1310 / 1550nm SC / APC 8D 10dB
Repartidor **ptico 1310/1550nm SC/APC 8D 10dB de Televes. Ref. 234401.
Deliveryman 8 outlets for fiber optic installations , for connections 1310/1550 nm .
Reference? 234401
?No. of outputs?? ?8
?
?
INPUT / OUTPUT?
?
?
? ?Wavelength nm 1310 – 1550
?Optical connector? ?SC/APC
?Insertion losses 1310/1550 nm ?dB ?? 11
?Uniformity ?dB ??55
?Directivity ?dB ??55
?Return losses ?dB ?? 0,8
????
GENERAL?
? ?Ingress protection level ?IP ?20
?Dimensions (WxHxD) ?mm 73 x 216 x 175
?
?
