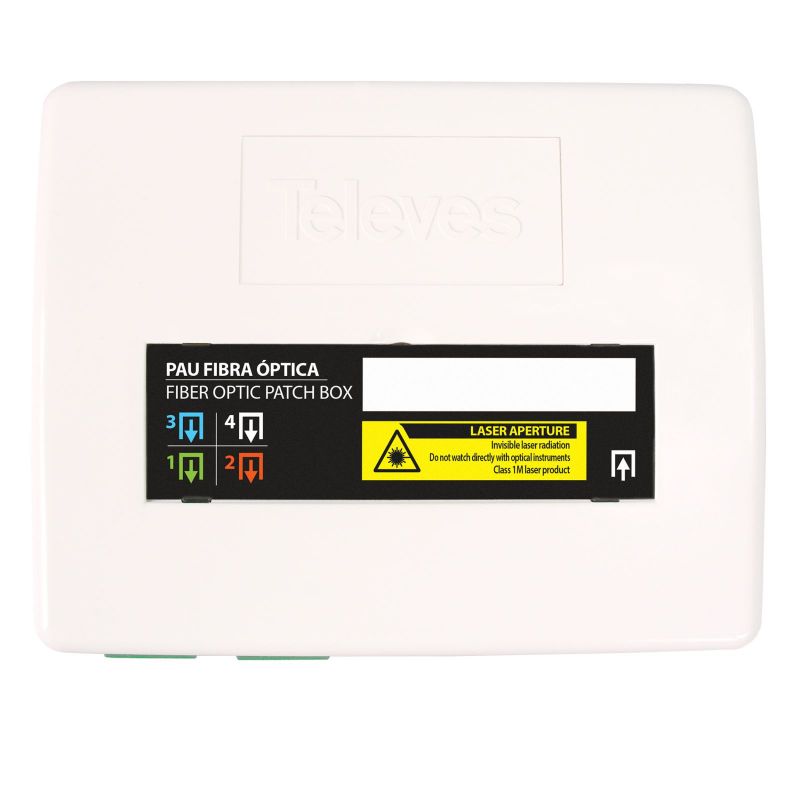

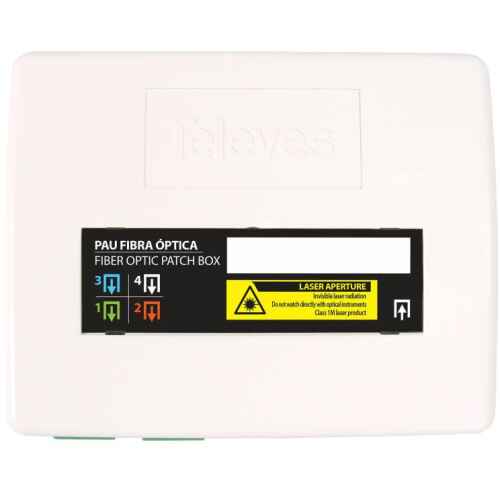

Optical fibre Patch/Splitting Box 1 to 4 SC/APC outputs Televes
KSh2,718.00
Device enabled as connection point to a fiber optic network. In ICT environments, and located in the Network Termination Register (RTR), it acts as a cut-off and test point for the optical network. It is also used as a connection point for optical fiber or as an optical splitter housing an optical splitter with 2 or 4 directions inside. Televes 231502
Device enabled as a connection point to an optical fibre network. In ICT environments, when installed in the Network Termination Equipment (NTE), it works as a cut-off and test point for the optical fibre network. Thanks to the design, it also allows installation in other types of premises (car repair shops, classrooms, etc.) and is used as a connection point for optical fibre (work table, wiring cabinets, DIN rails, etc.) or else as an optical distribution frame, housing a 2 or 4-way optical splitter.
Highlights
Made of robust ABS plastic
With a capacity of up to 4 SC/APC output connectors
Multi-anchoring system: DIN rail, wall or socket
Single direction of rotation of the fibres inside (which facilitates installation)
Identifying label
Equipped with 2 “SC/APC” female-to-“SC/APC” female adapters (with self-locking cover)
Features
White colour (RAL 9003)
6 inputs, pre-cut on its sides, for FO access
Back input for SC connector
Back input for FO and SC connector
Pre-cut input at the bottom, for access to a distribution frame (SC/APC)
Equipped with: 2 heat-shrink sleeves, 2 clamps, installation screws
Specifications
General
?Inputs ?6 precut inputs on the sides, to access FO
?1 rear entry for SC connector
?1 rear entry for FO
?1 precut entry at the bottom for access to the splitter (SC/APC)
?Outputs Up to 4 outputs for SC/APC adapters
?Material ABS (RAL 9003 white)
?Fixing type Wall / DIN rail
