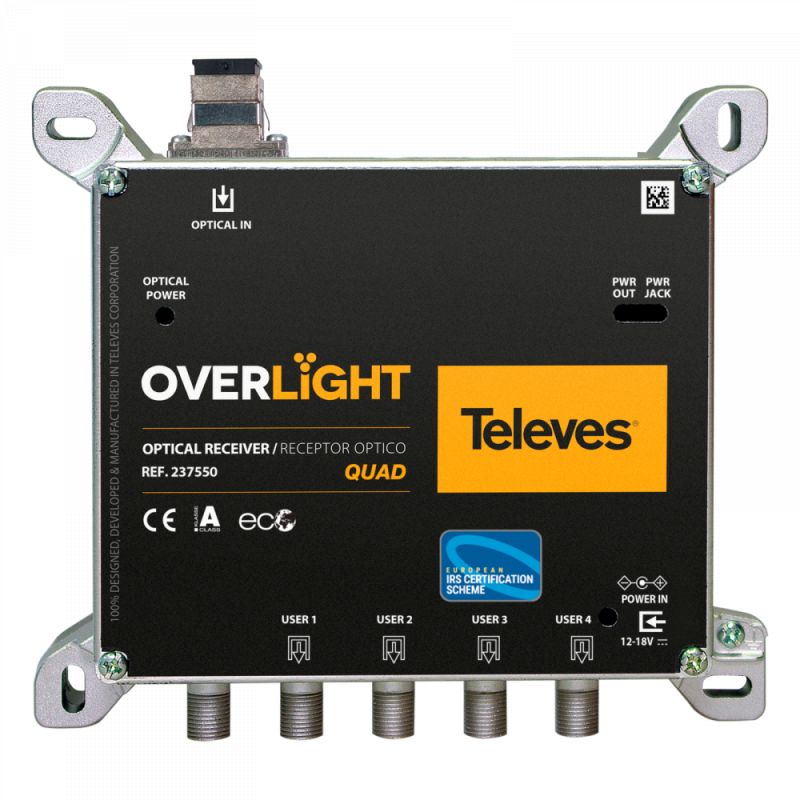

Optical Receiver Module Quad Overlight ?SC/APC?…
KSh83,902.00
Optimized electronic and optical engineering, at the service of TV. This Wideband and terrestrial satellite optical receiver is responsible for capturing an optical TV signal (1100…1650nm), processing it and recovering the original terrestrial and satellite TV signals, offering 4 outputs in Quad mode: each connector provides the four polarities and bands.
Optimized electronic and optical engineering, at the service of TV
This Wideband and terrestrial satellite optical receiver is responsible for capturing an optical TV signal (1100…1650nm), processing it and recovering the original terrestrial and satellite TV signals, offering 4 outputs in Quad mode: each connector provides the four polarities and bands.
Thanks to its optimized electronic behavior and low losses, it is possible to reduce the number of amplifier devices needed and simplify deployment in collective installations, preserving signal quality from start to finish. In addition, it is fully indicated for use in GPON installations.
This device is part of the Overlight system that distributes satellite and DTT signals to multiple users through a single optical fiber.
Stands out for
Very light and compact size (137x120x30mm)
Compatible with GPON deployments
low losses
Optimized electronic behavior
100% European design, quality and manufacturing
Main features
SC/APC optical connector
?F? Type RF Connectors
High armored chassis, made of Zamak
wall screwable
LED signal status indicator
Specifications
Number of TERR outputs 4
Number of Legacy outlets 4
Impedance ohms 75
output type
TERR legacy
output level dB?V
69…73 64…71
Wavelength nm 1200…1600
optical device InGaAs pin photodiode
Optical input level dBm -13…-6
RF connectors “F” female
optical connectors SC/APC
supply voltage Vdc 12…18
max current @12V mA 750
max current @18V mA 530
Operating temperature ?C -5…45
