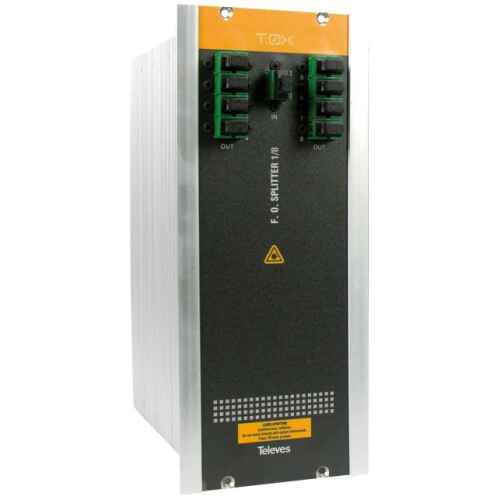

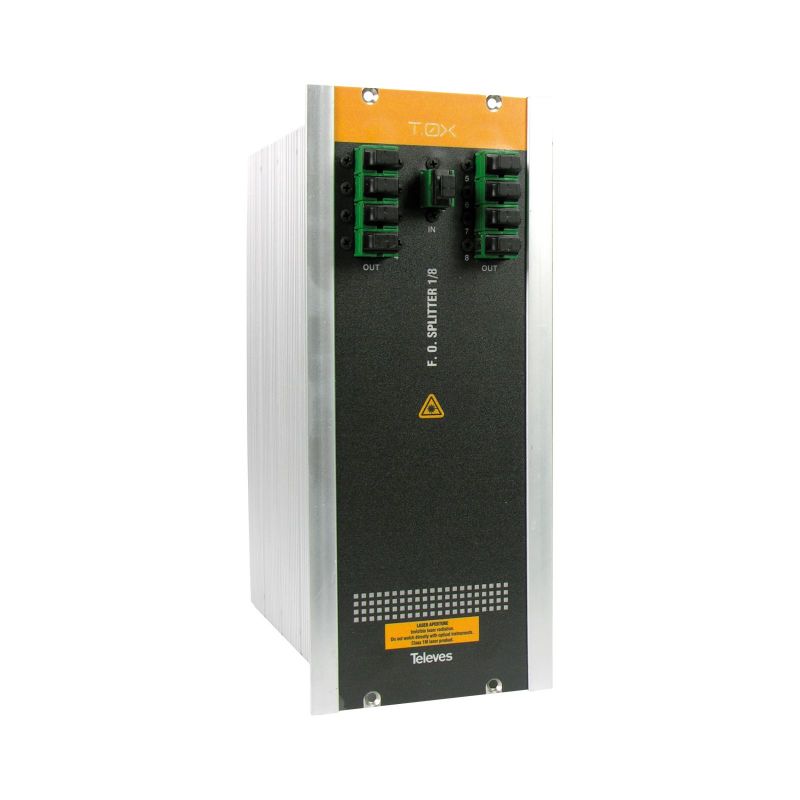

Optical splitter T.0X SC/APC 8 outputs 1260-1650nm 10dB Televes
KSh81,942.00
8-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range.?The T.0X format frame allows rack installation for optical fibre headends. Televes 234401
8-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range.?
The T.0X format frame allows rack installation for optical fibre headends.
Highlights
High reliability
High uniformity among outputs
T.0X-series format
Features
Low insertion losses
SC/APC connectors
Specifications
Reference? 234401
?
?
INPUT / OUTPUT?
?
?
? ?Wavelength nm 1310 – 1550
?No. of outputs?? ?8
?Optical connector? ?SC/APC
?Insertion losses 1310/1550 nm ?dB ?? 11
?Return losses ?dB ??55
?Directivity ?dB ??55
?Uniformity ?dB ?? 0.8
GENERAL?? ?Ingress protection level ?IP ?20
?Dimensions mm 73 x 216 x 175
