Optical to RF converter with four outputs 236903 from Televes

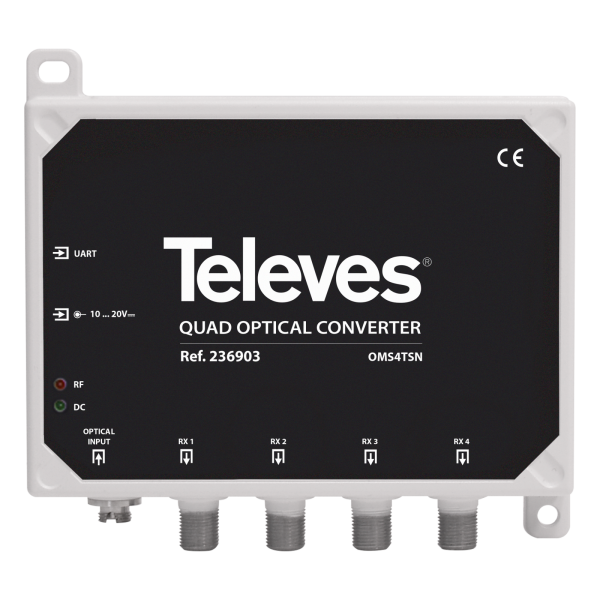

Optical RF converter Quad 236903 from Televes
The Televes converter 236903 is a complement of systems with optical LNB, which receives an optical TV signal (1100-1650nm) and recovers the original RF signal.
This converter offers 4 RF outputs, delivering the Earth and satellite combination in each connector.
Televes converter 236903 has a switch to regulate satellite gain in three levels: low, medium and high
Televes converter 236903 is an optical RF signal converter with 4 outputs.
What technical characteristics does the 236903 converter have?
Switch to regulate the satellite gain in three levels: low, medium and high
Led indicator of presence of RF signal
Accepts terrestrial TV mix (FM / DAB / UHF)
Small size
FC / PC and F-type RF optical connectors
What technical specifications does the 236903 converter have?
RF Output Satellite
Horizontal high band MHz 1100 – 2150 ?15.5V + 22KHz
Vertical high band MHz 1100 – 2150 ?14.5V + 22KHz
Horizontal low band MHz 950 – 1950 ?15.5V
Vertical low band MHz 950 – 1950 ?14.5V
Return losses dB ? 10
Rated impedance ? 75
Gain variation in dB band ? 7
Rejection in Terrestrial dB 30
Typical output levels dB?V 70
FM / DAB / DTT
RF frequency range MHz 88 – 790
FM 88 – 108
DAB 174 – 240
DTT 470 – 790
Return losses dB ? 10
Rated impedance ? 75
Gain variation in dB band ? 5
Rejection in Satellite dB 20
Typical output levels No. Multiplexes dB?V FM / DTT
1 76
6 72
Optical optical input
Optical wavelength nm 1100 – 1650
Optical return loss dB 45
Optical input power Min. DBm – 15
Max 0
General Electric
Supply voltage V 10 -20 per AC / DC or STB adapter
Current consumption mA 230 @ 10V (RX1 and RX2)
230 @ 10V (RX3 and RX4)
Mechanic
Temperature ranges Operation ?C -15 … +55
Storage -20 … 70
Optical input Typ FC / PC
Connectors in RF output Typ 4 x F- female
