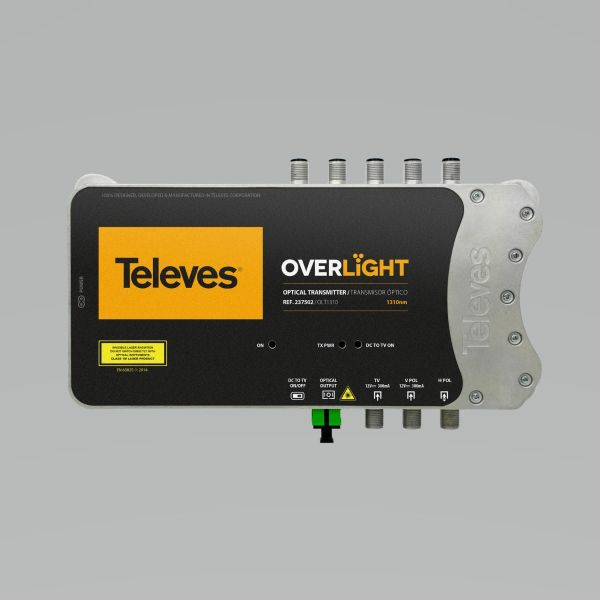

Optical Transmitter with 1310nm/10dBm DAB/UHF/SAT Optical Output
Overligth Series CWDM DAB/UHF/SAT Optical Transmitter
The Overlight series is characterized by being a series of satellite and Terrestrial distribution over fiber optics. So you will be able to group all the services in a single optical fiber, achieving installations with fewer antennas and devices in the installation, making the installer’s job much easier.
The transmitter will receive the signal from the LNB (Ref. 747402), both satellite and terrestrial, and will send it through a single fiber with SC/APC connector, being able to distribute it to up to 64 users.
Its optimized electronic design gives this transmitter an optical output power of 10dBmW with a wavelength of 1310nm.
Technical Specifications of Overligth Series CWDM DAB / UHF / SAT Optical Transmitter 237502
?
Inputs
?
TERR
V
H
Frequency range
MHz
47 … 694
290 … 2340
290 … 2340
Input level
dB?V
23 … 35
3 … 20
3 … 20
Input impedance
?
75
Laser
?
MQW-DFB uncooled
Wavelength
nm
1310 … 1310
Optical output power
dBmW
10
Input voltage
Vac
110 … 230
Operating temperature
?C
-5 … 45
