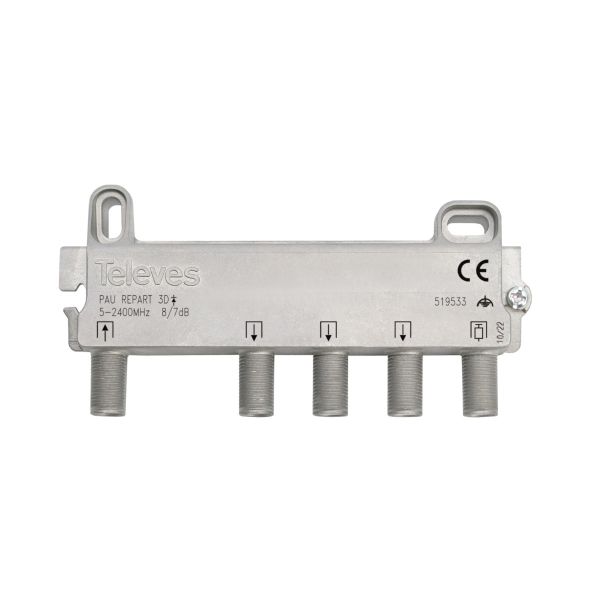

PAU Distributor 3 Outputs Connector F 8 dB Televes
PAU Distributor 3 Outputs Connector F 8 dB Televes
This indoor installation splitter has 3 outputs with F connectors, suitable for SMATV signals. It has good shielding and improves transmission losses.
As it comes with the PAU, it offers an additional 75 Ohms loaded input for the connection of the second downpipe. This user access point for distribution is used in collective ICT-2 installations.
Includes grounding screw and DC pass from output to input. It can also be installed outdoors, as long as we put it inside a chest (TEL4177).
The distributor has an attenuation of 8 dB at 690 MHz. It can be installed on a wall, rack or assembled on a DIN rail. Its armored casing is made of zamak, providing great shielding.
Technical Specifications of the PAU Distributor 3 Outputs Connector F 8 dB Televes
?
Frequency range MHz 5 … 2400
Number of outputs ? 3
Inputs/Bands ?
TERR SAT
Passage losses dB
8 7
Rejection between departures dB
> 20 > 20
Connectors ? “F” female
Max Voltage V 24
Max current mA 350
DC step ? out?in
