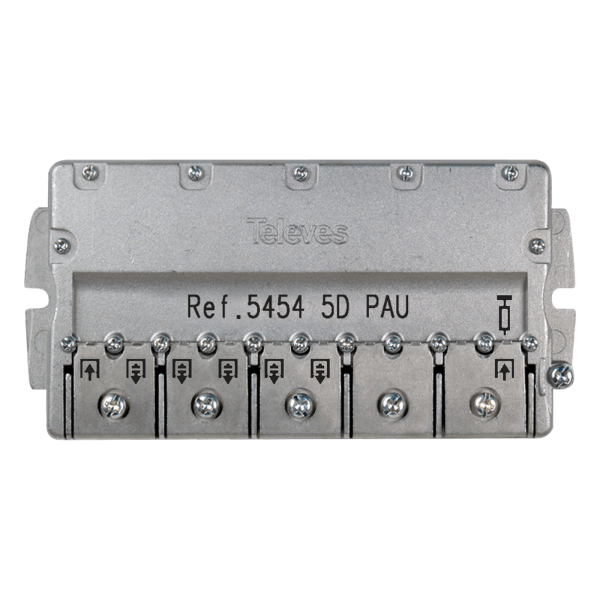

PAU Distributor 5 Outputs Flange Connector 13 dB Televes
PAU Distributor 5 outlets EasyF Televes 5454
The PAU (User Access Points) are equipment used in installations that are governed by the ICT-2 regulations, where each home is served by two downstream TV cables, through which two satellite signals are sent. The function of the equipment is to select which signal dies at that point and which one reaches the user’s TV sockets.
It has 2 Inputs (one of them with a 75 Ohms load) and 5 Outputs with flange connection.**This PAU has an insertion loss of 13 dB at 690 MHz.
The splitter comes in a metallic shielded box, and provides a low attenuation.
Technical Specifications of Televes 5454 PAU 5 Outlet PAU Distributor
?
Number of outputs ? 5
Frequency range MHz
5 … 47 47 … 862 950 … 2400
Passage Losses S1 dB
< 15 13 13
Passage Losses S2 dB
< 15 13 13
Passage Losses S3 dB
< 15 11 11
Passage Losses S4 dB
< 15 11 11
Passage Losses S5 dB
< 15 11 11
Rejection between exits dB
> 30 > 28 > 28
Maximum current mA 300
DC Step ? Sal.?Entr.
?
