PAU splitter 2 outputs with connector F Televes

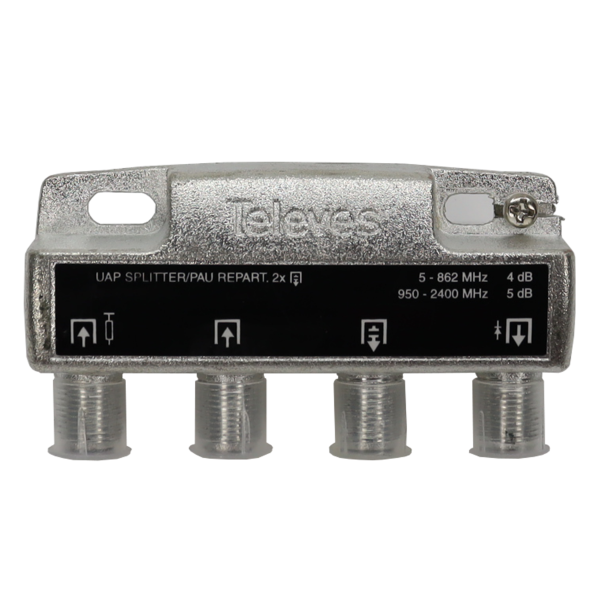

Splitter with PAU with 2 outputs 515020 for SMATV signals
This splitter for indoor installation has 2 outputs with F connectors, suitable for SMATV signals. It has a good shielding and improves through losses.
As it comes with PAU, it offers an additional loaded input for the connection of the second downspout. This distribution user access point is used in collective ICT-2 installations.
Includes grounding screw and DC pass from output to input. It can also be installed outdoors, as long as we put it inside a chest (TEL4177).
The splitter has a 4-5dB attenuation.
Technical Specifications Splitter with PAU with 2 TEL515020 outputs for SMATV signals
?
Number of outputs
?
2
Frequency range
MHz
5 … 862
950 … 2400
Losses of passage
dB
4
5
Rejection between outputs
dB
> 20
> 20
Current max.
A
1
DC step
?
IN.?OUT.
