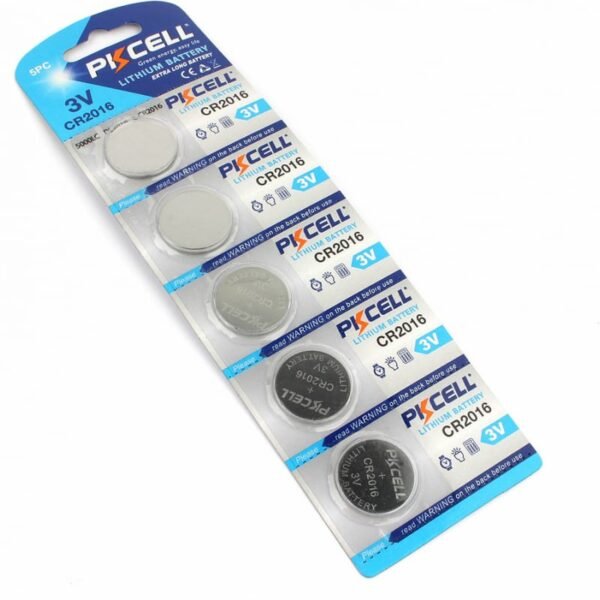

PKCELL CR2016 3V Lithium Battery
KSh1,200.00
Description
PKCELL CR2016 3V Lithium Battery
Long-Lasting Power in a Compact Design
The PKCELL CR2016 battery delivers reliable 3V power in a slim, coin-shaped profile. Measuring just 20mm in diameter and 1.6mm in thickness, this lithium battery combines compact dimensions with impressive energy density. Furthermore, the CR2016 utilizes manganese dioxide (MnO₂) cathode technology to ensure stable voltage output throughout its operational life.
Advanced Engineering Features
The PKCELL CR2016 incorporates several technical innovations:
Lithium metal anode for higher energy density
Non-aqueous electrolyte for extended temperature range
Hermetically sealed stainless steel casing to prevent leakage
Low self-discharge rate of less than 1% annually
Operational temperature range from -20°C to 70°C
Additionally, each PKCELL CR2016 undergoes rigorous quality control testing, ensuring consistent performance across various devices.
Versatile Applications
The CR2016 serves as a power source for numerous devices requiring reliable, compact energy:
Wristwatches and pocket calculators
Medical devices such as glucose meters
Car key fobs and small remote controls
Computer motherboard CMOS batteries
Small electronic toys and gadgets
Ideal Users for the PKCELL CR2016
This battery is particularly suitable for:
Electronics enthusiasts who need reliable power for precision instruments – the CR2016’s stable voltage discharge curve ensures consistent performance
Medical device users requiring dependable operation – with a 5-year shelf life, the PKCELL CR2016 offers peace of mind
Watch collectors and horologists – the battery’s 1.6mm thickness makes it compatible with ultra-thin timepieces
Automotive professionals – the extended temperature range allows the CR2016 to function reliably in variable environments
Technical Specifications
Battery Chemistry
Type: Primary lithium coin cell
Chemistry: Lithium-manganese dioxide (Li-MnO₂)
Nominal voltage: 3.0V
End-of-discharge voltage: 2.0V
Physical Characteristics
Diameter: 20.0mm ± 0.1mm
Height: 1.6mm ± 0.1mm
Weight: Approximately 1.8g
Terminal material: Stainless steel
Performance Parameters
Capacity: 90mAh (at 0.2mA discharge to 2.0V)
Typical drain current: 0.1mA to 0.5mA
Maximum pulse current: 10mA
Internal resistance: <100 ohms (at 1kHz AC)
Self-discharge rate: <1% per year at 23°C
Environmental Specifications
Operating temperature: -20°C to 70°C
Storage temperature: -20°C to 35°C (recommended)
Storage humidity: 45-75% RH non-condensing
Regulatory Compliance
RoHS compliant: Yes
Mercury-free: Yes
UN transportation classification: UN3090, Class 9
IEC standard: IEC 60086-4
UL recognition: File MH12345
The PKCELL CR2016 3V Lithium Battery combines superior energy density with reliable performance, consequently making it an excellent choice for applications requiring consistent power in a compact form factor.
