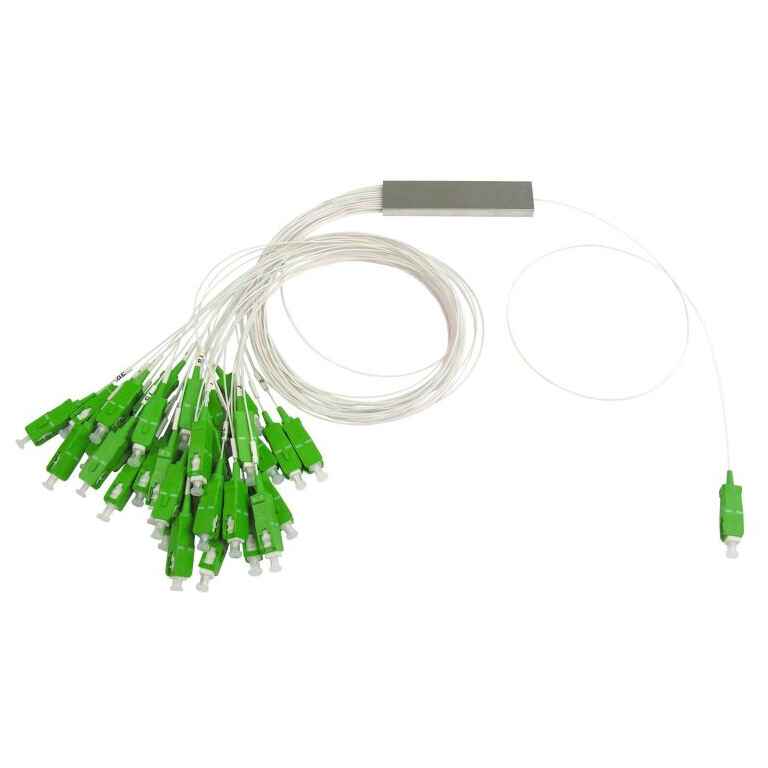

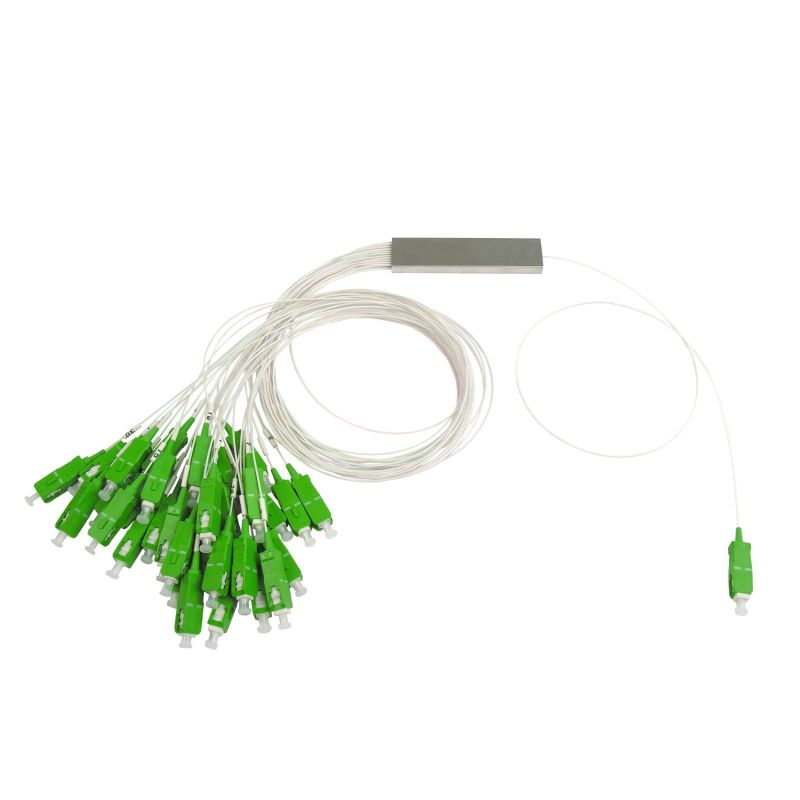

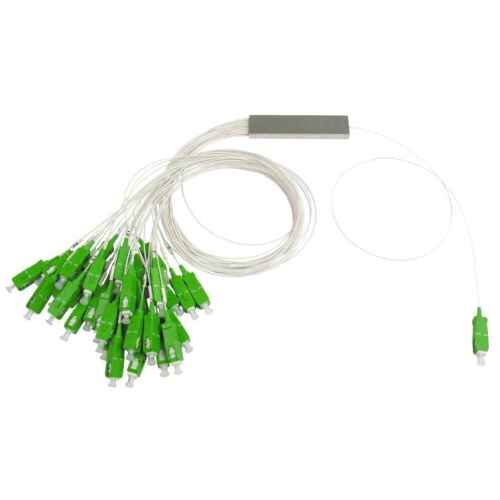

PLC SC/APC optical splitter 32 outputs 1260-1650nm 17dB Televes
KSh46,270.00
Component PLC splitter of 32 outputs and SC/APC connectors, for optical signals in a range of 126-1650nm.
They are ideal for mounting in boxes or rack trays. Televes 234650
Component PLC splitter of 32 outputs and SC/APC connectors, for optical signals in a range of 126-1650nm.
They are ideal for mounting in boxes or rack trays.?
Highlights
High reliability
High uniformity among outputs
Inside installation of boxes, trays and fibre accessories
Features
Low insertion losses
Made in 900 ?m single-mode fibre (SM)
SC/APC connectors
Specifications
Reference 234650
N? of outputs ? 32
Input & output connectors Type SC/APC
Fiber Type Single-mode G657A1
Fiber diameter ? 900
Working wavelength nm 1260 … 1650
Insertion loss (IL) dB ? 17.5
Return loss (RL) dB ??55
Uniformity dB ? 2
Related products
-

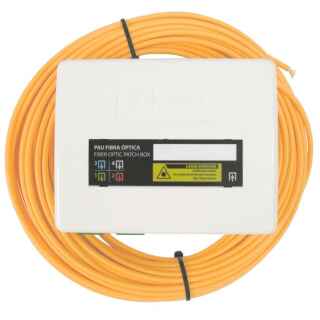

Fiber optic PAU 4 Outputs SC/APC 4 Fiber 25m Televes
KSh19,572.00Add to cartDevice enabled as a connection point to an optical fibre network. In ICT environments, when installed in the Network Termination Equipment (NTE), it works as a cut-off and test point for the optical fibre network. Incorporates pre-connection on the 4-SC/APC connector UAP.?Televes 231531
-
Fiber optic PAU 4 Outputs SC/APC 4 Fiber 55m Televes
KSh27,436.00Add to cartDevice enabled as a connection point to an optical fibre network. In ICT environments, when installed in the Network Termination Equipment (NTE), it works as a cut-off and test point for the optical fibre network. Incorporates pre-connection on the 4-SC/APC connector UAP.?Televes 231533
-

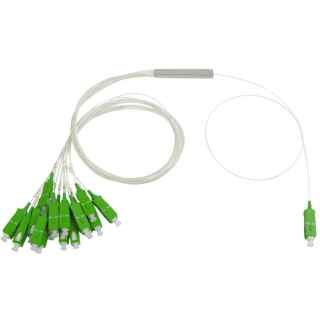

Add to cartComponent PLC splitter of 16 outputs and SC/APC connectors, for optical signals in a range of 126-1650nm.
