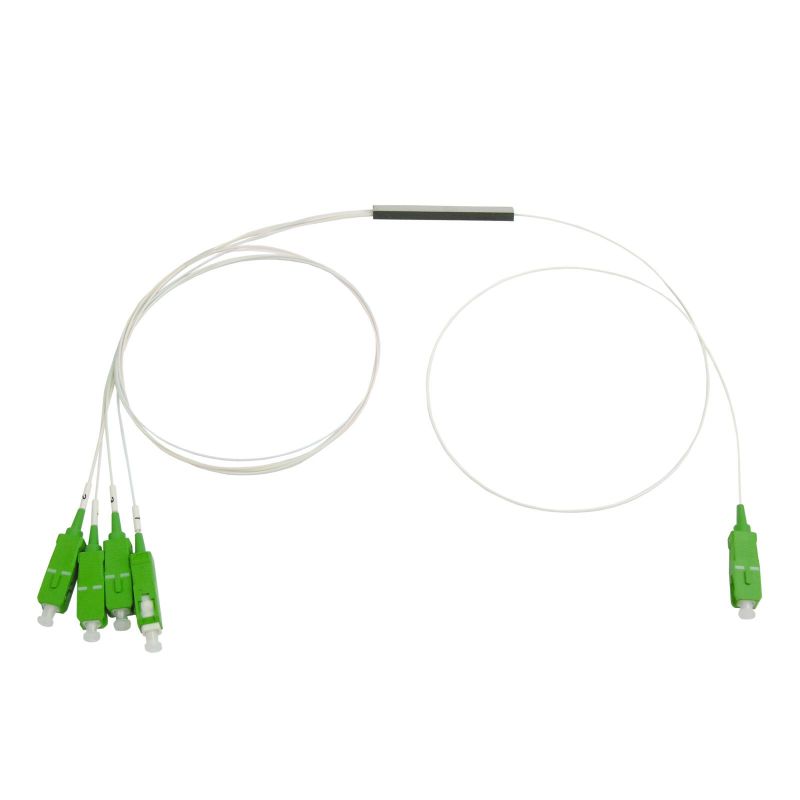

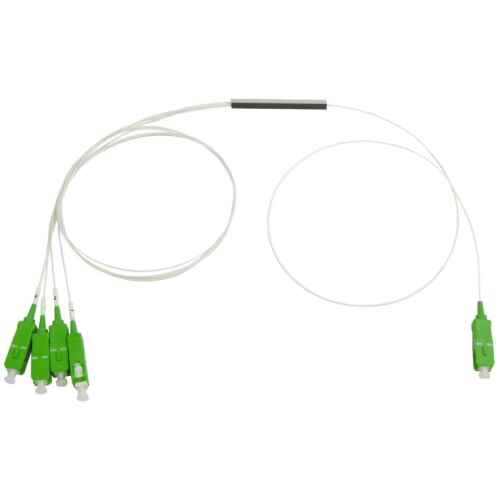

PLC SC/APC optical splitter 4 outputs 1260-1650nm 7dB Televes
KSh12,430.00
Component PLC splitter of 4 outputs and SC/APC connectors, for optical signals in a range of 126-1650nm.
They are ideal for mounting in boxes or rack trays. Televes 233950
Component PLC splitter of 4 outputs and SC/APC connectors, for optical signals in a range of 126-1650nm.
They are ideal for mounting in boxes or rack trays.?
Highlights
High reliability
High uniformity among outputs
Inside installation of boxes, trays and fibre accessories
Features
Low insertion losses
Made in 900 ?m single-mode fibre (SM)
SC/APC connectors
Specifications
Reference 233950
N? of outputs ? 4
Input & output connectors Type SC/APC
Fiber Type Single-mode G657A1
Fiber diameter ? 900
Working wavelength nm 1260 … 1650
Insertion loss (IL) dB ? 7.5
Return loss (RL) dB ??55
Uniformity dB ? 0.8
