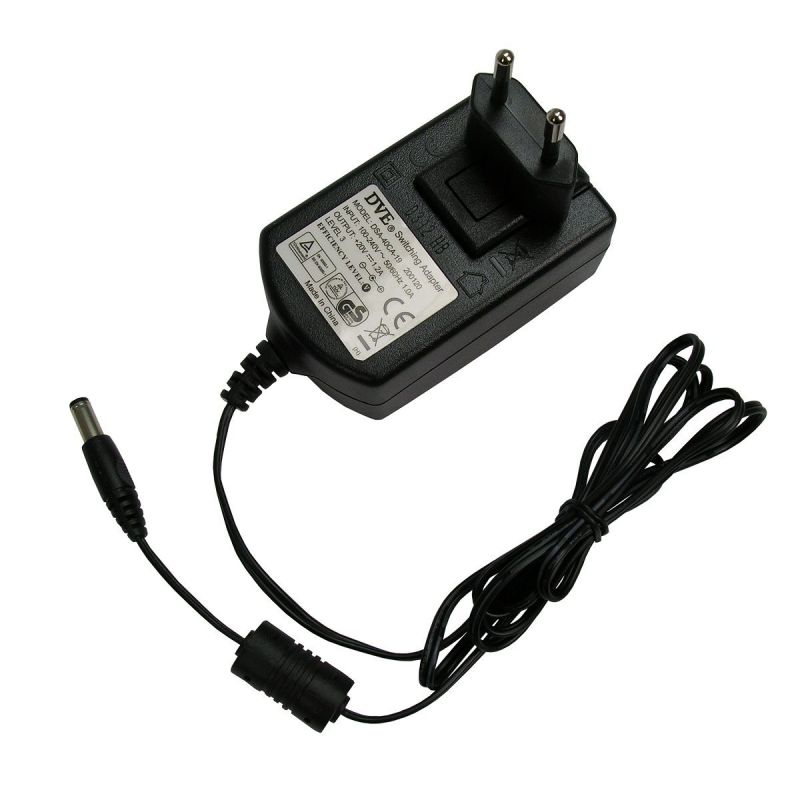

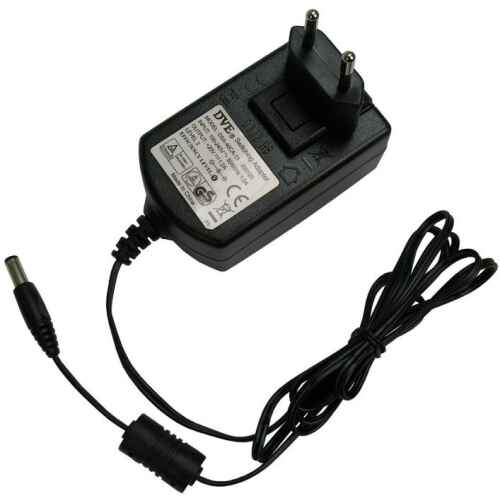

Power supply 20V 1.2A (for optical converter)
KSh9,650.00
This power supply is used to power the optical converter ref. 237003.
This power supply is used to power the optical converter ref. 237003.
Specs
Reference / Prod. Code 237050 / PSU24
?Mains Voltage Vac 100-240
?Frequency Hz ?50-60
?Output Voltage ?Vdc ?20
?Max. Output Current ?A ?1,2
?Operating Temperature ?C -5 … +45
