Power Supply for MultiSwitch and Optical LNB

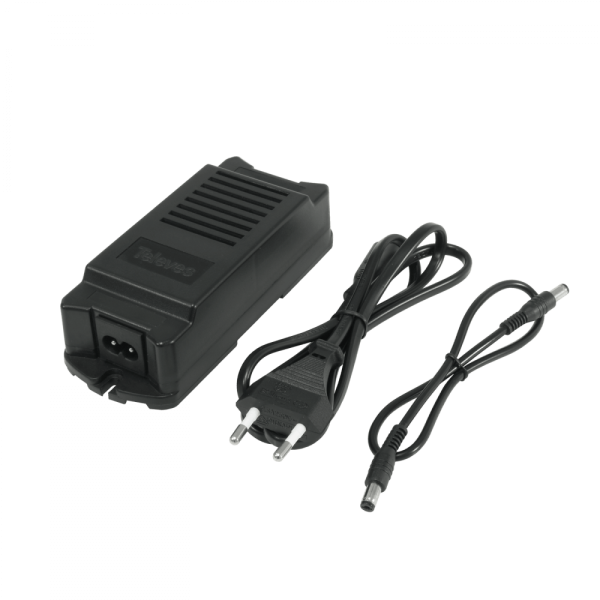

Power Supply 12V 3A Televes 732802
AC transformer (196-264V) to DC 12.5V and 2.8A, to supply Televes’ range of Nevoswitch multiswitches or various Optical LNBs (using a coaxial splitter).
Small feeder, with European manufacturing and quality. Withstands a wide range of operating temperatures. 12V jack type output connector.
12.5V and 2.8A power supply, designed to power an Optical Nevoswitch or LNB.
What are the main characteristics of the Televes 732802 power supply?
3A maximum current
European design, quality, and manufacturing
Plug-in power supply
196 VAC-264 VAC supply voltage
12V output voltage
Wide range of operating temperatures
Limited size
What technical specifications does the Televes 732802 power supply have?
Input voltage V~ 196- 254
Frequency Hz 50 – 60
Output voltage V= 12,5
Max. output current A 2,8
Temperature range ?C ?5?.+45 ?C
Protection level IP IP20
