Rack Rack Wall/Floor 19″ 8+2U Depth 450 (Disassembled)

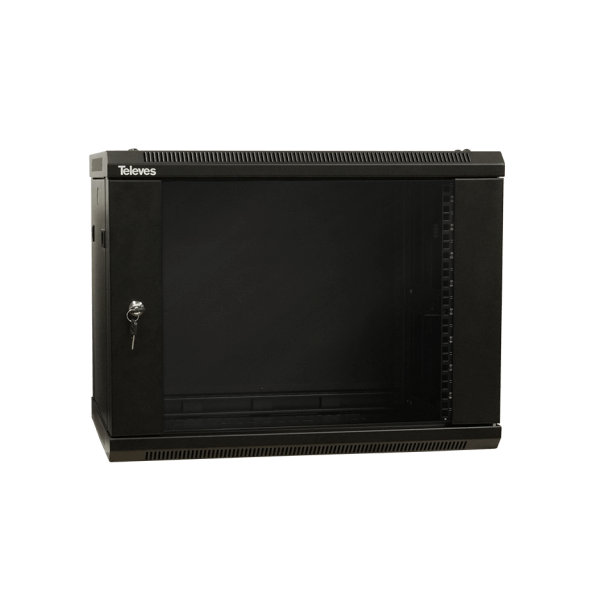

Wall/Floor Rack 19″ 8+2U 450mm Depth Televes 533107
High resistance and durability rack cabinet to organize and protect fiber optic, data or coaxial network equipment, being able to group the different technologies in the same rack. Thanks to its tempered glass door, the equipment is visible and protected under lock and key in this secure structure.
This rack has a capacity of 8U and has an extra 2U to place 1U cable gland panels (included) at the top and bottom, making a total of 10U usable.
Rack designed for wall or floor installation, capable of supporting a maximum load of 60kg inside. Dimensions (W x H x D): 600mm x 460mm x 450mm. It has a reversible and removable front door and hinged folding side doors.
It offers good natural ventilation to accommodate active equipment, with the possibility of forced ventilation using fans.
ATTENTION! This rack is supplied disassembled in a 680x550x170mm box.
19″ wall/floor rack cabinet with 8+2U capacity and 450mm depth (Disassembled)
What are the main characteristics of the Televes Rack 533107?
High strength and durability: made of steel, with a coating based on polyester resins and lead-free pigments
Loading capacity up to 60kg
Extremely easy installation and use: reversible and removable front door with flexible sockets and hinged folding side doors
Installation of different types of panels or equipment: lateral profiles are depth-adjustable
Safety: Tempered glass, lockable hinged front door
Natural ventilation, with forced ventilation option
Laser marking: numerical identification of each “U”
Black colour (RAL 9004)
Includes 1U cable panels (2 units)
Upper and bottom adjustable covers for cabling
Indoor installation (IP20)
A 120x120mm ventilation kit can be incorporated for the installation of active equipment, such as headends
