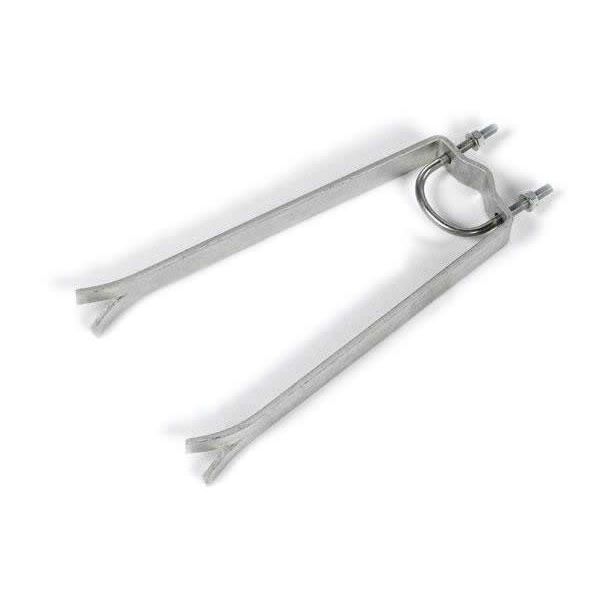

Recessed Wall Bracket type “V” 300mm
Support type “V” 300mm 2402 of Televes
Support with flanges for V-shaped recessed mast and up to 300mm apart from the wall. Being recessed, this guarantees maximum mast support even with strong wind gusts.
It is necessary to perform work to embed this support in the concrete. Two supports like this are needed to hold the mast vertically and not move. Galvanized steel support to protect it from corrosion and rust.
Support type V 300mm of Televes for support of mast.
What are the main features of Televes 2402 support?
“V” shape
Maximum mast support
Galvanized support protected against rust.
Dimensions: 305 (L) x 160 (W) x 30 (H) mm
