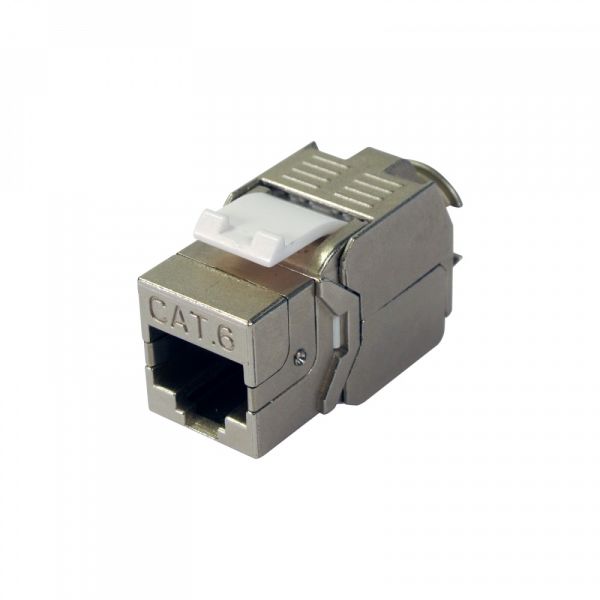

RJ45 FTP Connector Category 6 Female Grip Type Televes Plastic Box
RJ45 FTP Cat6 Female connector for Televes Data cable 209903
The 209903 connector comes with a grip-type assembly, with two moving parts that close over the cable, holding it in place and securing the anchoring of the pairs.
The connector is RJ45 FTP compatible with category 6 or lower. It is reusableeasy to connect as it does not require any specific tool. This guarantees multiple connections without added losses.
Technical Specifications of the RJ45 FTP Cat6 Female Connector for Data cable 209903 from Televes
Data connector model ? Female
Data connector type ? RJ45
Categorie ? Cat 6
Shielding type ? FTP
Housing material ? Zinc alloy
Voltage max. Vac 150
Max. current A 1.5
Contact resistance m? 100
Insulation resistance M? 500
Dielectric strength (60Hz/1min) Vac 1000
Conductor type AWG ? 26 … 23
Special tool required ? No
Durability (connection cycles) ? 1500
Reusable ? Yes
Cable output ? 180?
