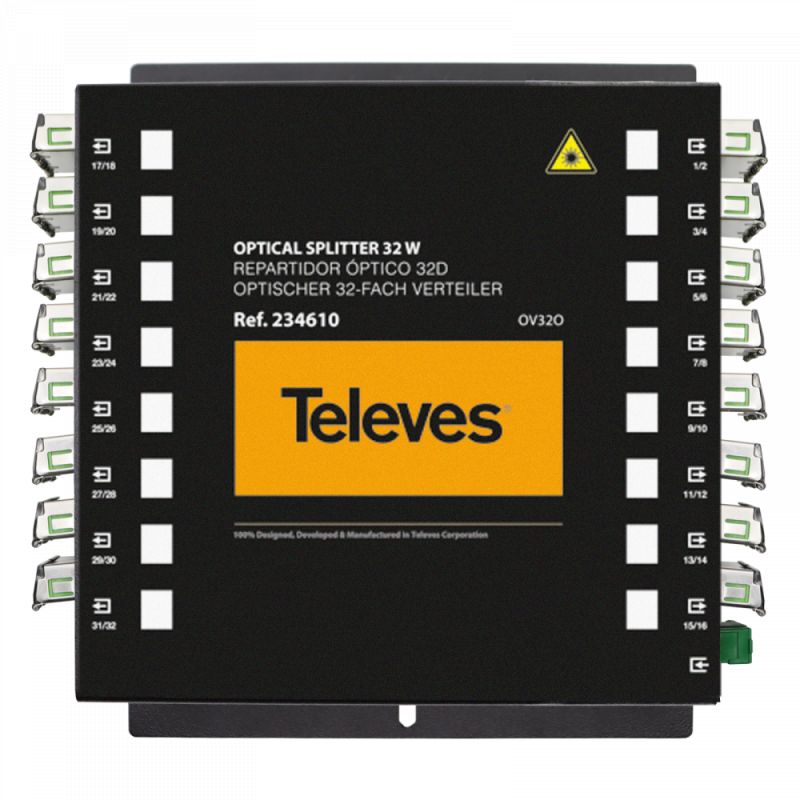

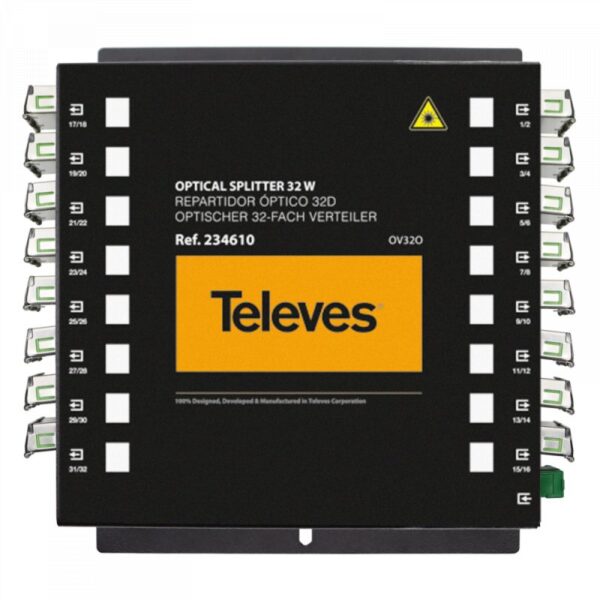

SC/APC 32W optical splitter 1260…1650nm 17dB Televes
KSh51,098.00
32-way splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range. Specially designed to complement the Overlight series. Also recommended for applications with WideBand LNB, with optical fibre or GPON networks. Its compact chassis is suitable for maximum optimisation of the available space.
32-way splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range.
Specially designed to complement the Overlight series. Also recommended for applications with WideBand LNB, with optical fibre or GPON networks. Its compact chassis is suitable for maximum optimisation of the available space.
Highlights
High reliability due to rigorous manufacturing process and high quality materials
Low insertion losses
High uniformity among outputs
Possibility of being screwed directly to the wall
Convenient and space-saving due to the location of the connectors on the same side of the chassis
Designed for indoor installation
100% European design, quality, and manufacturing
High strength: made of 1.5 mm thick steel
Black color (RAL 9003)
Single-mode fiber (SM)
SC/APC connectors
Applicable in FTTx, PON, LAN and WAN systems
Specifications
Number of outputs 32
Optical connectors Input SC/APC
Optical connectors Output SC/APC
Fiber type Single-Mode
Coupling ratio (per output) Symmetrical
Wavelength nm 1260 … 1650
Insertion losses dB < 17.5
Return losses dB > 60
Uniformity dB < 2
Polarization loss (PDL) dB < 0.3
Directivity dB > 55
Operating temperature ?C -40 … 85
