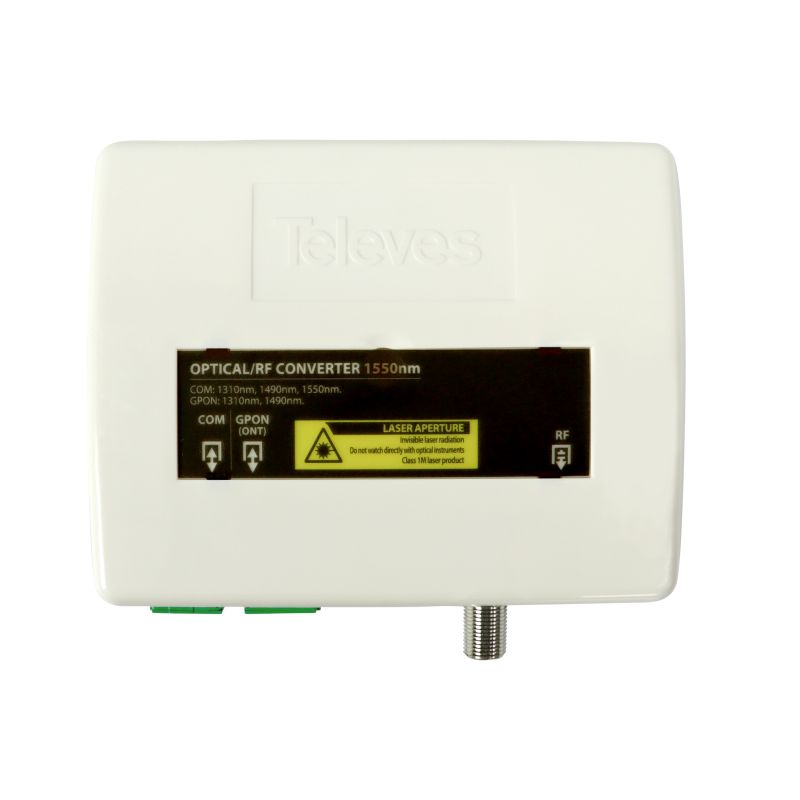

SC/APC Optical Receiver/Demultiplexer (-5…+2dBm)…
KSh15,602.00
Passive receiver that captures an optical signal on a single fiber (1310/1490/1550nm), and demultiplexes it (WDM). The TV signal (1550nm) is converted to an RF output (54-2400MHz), while the 1310/1490nm wavelengths are destined to data signals (GPON) to distribute them through its optical port.
Passive optical receiver, with WDM
1310/1490/1550nm
Passive receiver that captures an optical signal on a single fiber (1310/1490/1550nm), and demultiplexes it (WDM). The TV signal (1550nm) is converted to an RF output (54-2400MHz), while the 1310/1490nm wavelengths are destined to data signals (GPON) to distribute them through its optical port.
Ideal for applications FTTH/FTTR and as a RF Overlay receiver in GPON networks.
Highlights
Stable RF signal output level
DIN rail or wall installation
Compact and resistant ABS plastic case, white colour (RAL 9003)
Features
SC/APC optical connectors
F-type RF connector
Specifications
?RF Output
Conector de RF F-Female
Bandwidth MHz 54 – 2400
Impedance Ohm 75
Planicity dB ? 2
Output level dB?V 58 (DTT)
49 (SAT)
Optical input/output
Number of ports 1 COM bidirectional
1 GPON bidirectional
Wavelength nm 1310 & 1490 <> GPON
1310 & 1490 <> COM
1550 < COM
Maximum optical input power dBm +2
Minimum optical input power recommended dBm -5
Optical return losses dB > 40
Optical connectors SC/APC
Type of optial device InGaAs pin photodiode
General
Operating temperature ?C -5 … +45
Protection index IP30
Application example
