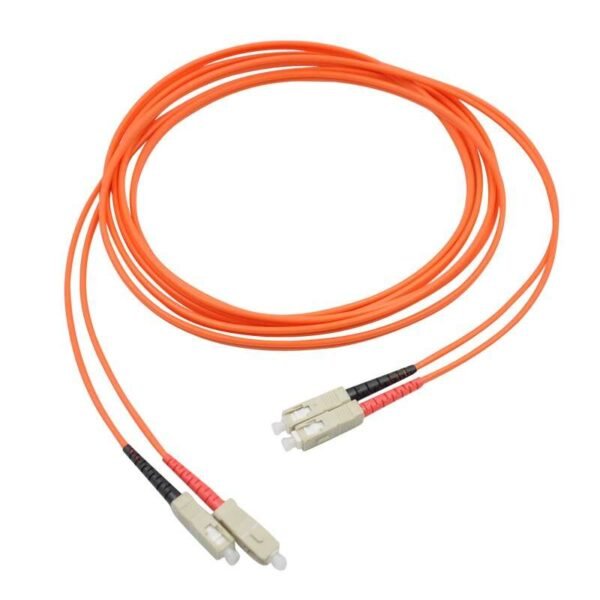

SC-SC 1M Multimode Duplex Fiber Patch Cords
KSh1,600.00
Description
SC-SC 1M Multimode Duplex Fiber Patch Cords
The SC-SC 1M Multimode Duplex Fiber Patch Cords are essential components designed for reliable and efficient fiber optic connectivity in various networking and telecommunications applications. With SC connectors on both ends, these patch cords offer seamless integration into existing fiber optic systems, ensuring optimal performance for high-bandwidth tasks.
At a length of 1 meter (approximately 3.28 feet), these patch cords provide a compact solution for short-distance connectivity, making them ideal for use in data centers, telecommunications networks, and other environments where space efficiency is crucial. They utilize high-quality multimode fiber, available in either 50/125µm or 62.5/125µm core diameters, allowing for robust data transfer and superior bandwidth capabilities.
Engineered for high performance, the SC-SC 1M Multimode Duplex Fiber Patch Cords exhibit an insertion loss of typically ≤ 0.3 dB per connector, ensuring minimal signal degradation and maximum data integrity. The return loss of ≥ 30 dB effectively reduces signal reflections, enhancing overall transmission quality. The connectors are finished with UPC (Ultra Physical Contact) polishing, which minimizes contact loss and improves connection precision.
The patch cords are encased in durable jackets made from either PVC (Polyvinyl Chloride) or LSZH (Low Smoke Zero Halogen) materials, ensuring safety and flexibility during installation. Designed to operate effectively within a wide temperature range, typically from -20°C to +70°C, they are suitable for a variety of indoor applications.
Each patch cord complies with industry standards such as Telcordia GR-326, undergoing rigorous testing for quality assurance and performance reliability. They are carefully packaged to prevent damage during transport, ensuring they are ready for immediate use upon arrival.
SC to SC Fiber Patch Cable 50/125 OM2 Multimode fiber is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, commercial, LAN, SAN and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services. SC SC Fiber Patch Cord conforms with TIA/EIA 492AAAA and IEC60793-2-10 A1b standards and complies with RoHS specifications.
SC to SC Multimode Duplex OM2 fiber patch cords operate at -20°C to +70°C and have a minimum installation bending radius of 5.0 cm and a minimum long term bending radius of 3 cm.
Cable Specifications:
Wavelengths: 850 and 1300nm
Color Code: Orange
Bend Radius: Minimum / 5cm
Cable Jacket: 3.0mm PVC
Operating Temperature: -4° to 158° F (-20° to +70° C)
Fiber Core: OM2 50/125um
Jacket: Standard Zip Cord Duplex
Length in Meters: 1
Length in Feets: 3.28084
Termination: Connector A (SC) / Connector B (SC)
Polarity: A(Tx) to B(Rx)
Insertion Loss: **0.3dB
Return Loss: **20dB
Polish: UPC to UPC
Fiber Grade: G.651
