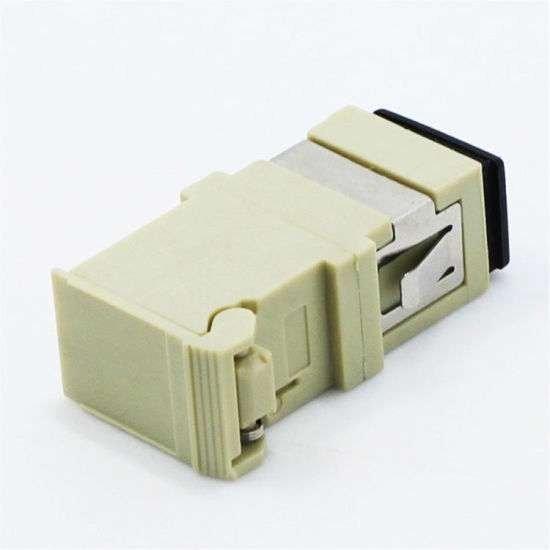

SC Simplex Multimode – Beige Fiber Optic Adaptor
KSh210.00
Description
SC Simplex Multimode – Beige Fiber Optic Adaptor
The SC Simplex Multimode Beige Fiber Optic Adapter is a high-performance component designed for seamless fiber optic connectivity in various networking and telecommunications environments. This adapter features a SC (Subscriber Connector) type and is configured for simplex connections, accommodating a single fiber channel.
The beige color of the adapter signifies its compatibility with multimode fibers, specifically suited for standard multimode applications at common wavelengths of 850 nm and 1300 nm. The adapter is engineered to ensure minimal signal loss, with a typical insertion loss of ≤ 0.2 dB and a maximum of ≤ 0.5 dB, as well as a return loss of ≥ 20 dB.
Constructed with durable plastic or metal housing, the SC Simplex Adapter is equipped with a high-precision ceramic or plastic sleeve that ensures accurate alignment of the fiber cores. This design helps maintain a reliable and stable connection, making it ideal for use in patch panels, wall plates, and fiber optic termination setups.
Built to withstand demanding environments, the adapter operates effectively within a temperature range of -20°C to 70°C and can handle up to 95% relative humidity. It is rated for up to 500 mating cycles, ensuring long-term reliability and consistent performance.
The SC Simplex Multimode Beige Fiber Optic Adapter complies with industry standards such as TIA/EIA-568 and IEC, and is RoHS and UL certified, ensuring safety and environmental compliance. It is a dependable choice for connecting SC multimode fiber cables in telecommunications networks, data centers, and local area networks (LANs).
Connector Type SC to SC Body Style Simplex
Fiber Mode Multimode Polish Type UPC
Insertion Loss **0.2dB Mating Durability 1000 times
Flange Yes Color Beige
Alignment Sleeve Material Zirconia Ceramic Compliance RoHS compliant
Applications Telecommunications networks CATV, LAN, MAN and WAN application Data processing networks Cable television Fiber-To-The-Home Premise Distribution Central Office/Remote Hubs Environment Operating: -20°C to 70°C Storage: -40°C to 85°C Humidity: 95%RH
