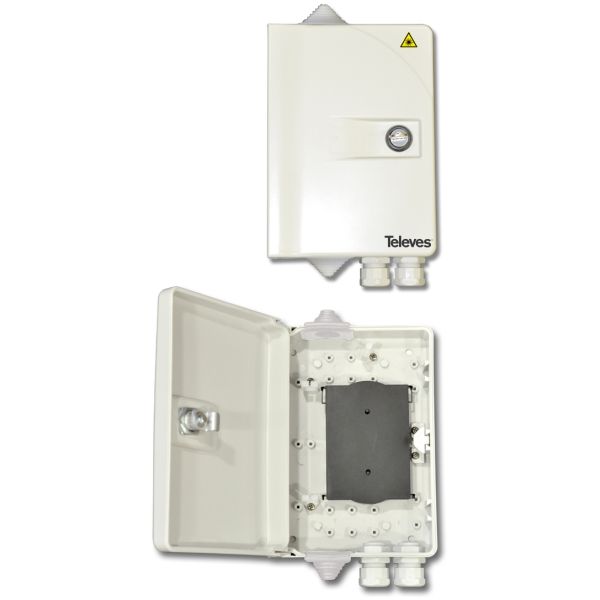

Secondary recording of 8 indoor fibers for fiber optics
Secondary record for 8 fibers
The optical fiber secondary register 231301 is designed for installation in the dividing wall of each plant, according to ICT-2 regulation.
This secondary record can behave as a step element or as a final record.
It has measures of 153 x 264 x 67cm and a maximum of 8 fibers can be installed.
The secondary register 231301 of Televes allows us to make an installation of fiber optics of 8 fibers.
What technical characteristics does the secondary register 231301 have?
Designed for installation on the dividing wall of each floor, according to ICT-2 regulations.
They can behave as a step element or as a final record.
Measures (W x H x D x): 153 x 264 x 67
What is a secondary record used for?
The Secondary Registers are used at the meeting points of the main and secondary channel, as address change records and as connection records every 30 m from the main channel.
