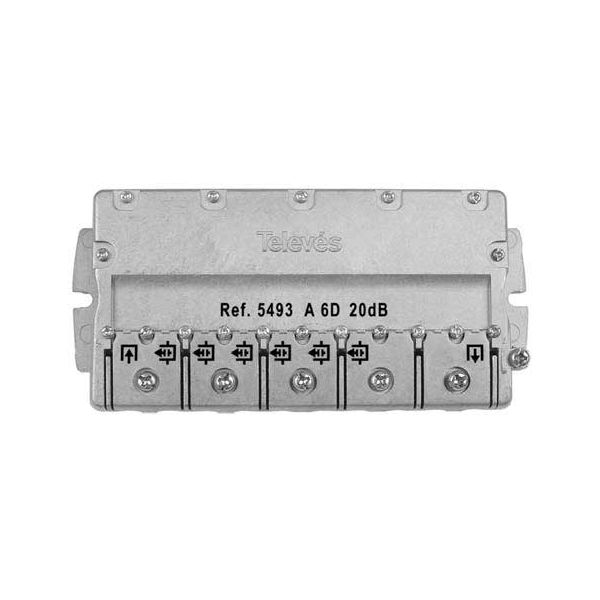

Shunt 6 outputs (20dB) with flange connection type EasyF
**Shunt Type 6 Outlets 6B 20dB Televes.
6-lead shunt with EasyF Connection System
This splitter is ideal for SMATV (Community Antenna and Television System) signals. Its compact design and efficient performance make it a great choice for distributing signals in buildings.
Highlights:
EasyF Connection:**Makes installation super easy and fast.
Bypass Loss: With 20dB bypass loss, it is perfect for 4th and 5th floors, ensuring a strong and stable signal.
Compact Design:**Easily fits indoors without taking up much space.
Electronic Efficiency:**Offers top performance with minimal signal loss for better quality transmission.
Recommendations:
Indoor Installation:**Best indoors to protect from the elements.
Presentation: Comes in boxes of 6 units, easy to handle and store.
Technical Specifications of the 6-Output Shunt Type 6B 20dB. Ref. 5494 from Televes.
Frequency range MHz 5 … 2400 ?
Number of derivations ? 6 ?
Floors ? 2y3 ?
Tickets/Bands ? TERR? SAT
Step losses dB 3 3.5
Bypass losses dB 20 20
Rejection between derivation dB > 40 > 40
Connectors ? Type “EasyF” ?
Max voltage V 40 ?
Max current mA 300 ?
DC Step ? Sal.?Entr. ?
Physical Data
Net weight: 238g
Gross weight: 238g
Width:121mm
Height:59mm
Depth:15mm
Main product weight:238g
