Skill Tech SH 990P Heavy – Duty Full Motion TV Wall Mount
SH 990P
Heavy – Duty Full Motion TV Wall Mount
Product Category: Full-Motion TV Wall Mount
Rank: Standard
Material: Steel

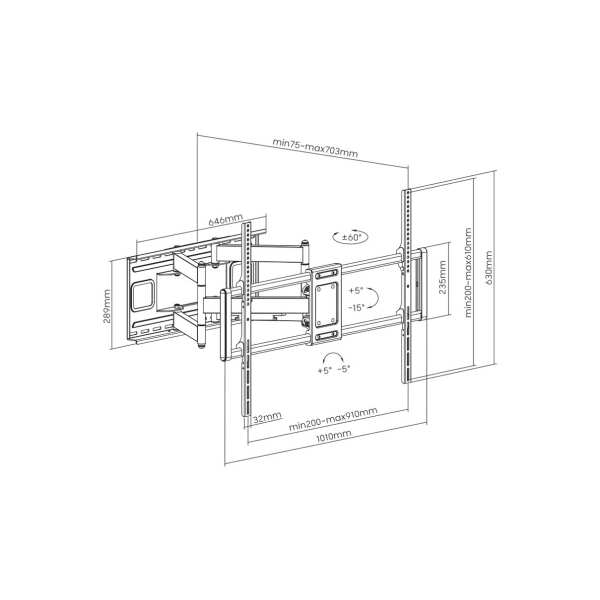

Dimensions: 703x1010x630mm (27.7″x39.8″x24.8″)
Fit Screen Size: Suitable For Most 60″ ~ 120″ Screen
Fit Curved TV: Yes
Max. Mounting Hole: 900x600mm
Weight Capacity: 120kg
Profile: 75-703mm (3″~27.7″)
Tilt Range: +5° ~- 15°
Swivel Range: +60° ~ -60°
Screen Level: +5° ~ -5°
The SH 990P Heavy-Duty Full Motion TV
Wall Mount is a robust and versatile solution for your home entertainment
setup. With a steel construction and dimensions measuring 703x1010x630mm
(27.7″x39.8″x24.8″), it’s designed to accommodate large
screens ranging from 60 to 120 inches, including curved TVs. This wall mount
offers extensive VESA compatibility, supporting various mounting hole
patterns, such as 200×200, 300×200, 400×200, 300×300, 400×300, 400×400,
600×400, 800×400, 800×600, and 900×600, with a maximum mounting hole size of
910x610mm.Impressively, this heavy-duty mount has a remarkable weight
capacity of 120kg (264lbs), ensuring secure and stable placement of your
oversized TV. Its profile ranges from 75mm to 703mm (3″ to 27.7″),
allowing you to achieve the perfect viewing height and adjust the mount’s
position according to your preferences. The tilt range of +5° to -15° enables
you to customize the screen angle for an optimal viewing experience.
Additionally, it offers an extensive swivel range of +60° to -60°, granting
flexibility in positioning the TV at different angles to suit your needs. The
screen level feature, with a range of +5° to -5°, ensures precise alignment.
Whether you have a flat or curved TV, this heavy-duty full-motion wall mount
delivers strength, versatility, and convenience for an exceptional home
theater experience.
