SmartKom LTE700 Televes smart mast amplifier

SmartKom intelligent mast amplifier

Autoprogramming, or manual programming via Bluetooth (ASuite)

Filters, mixes, amplifies and balances at the touch of a button

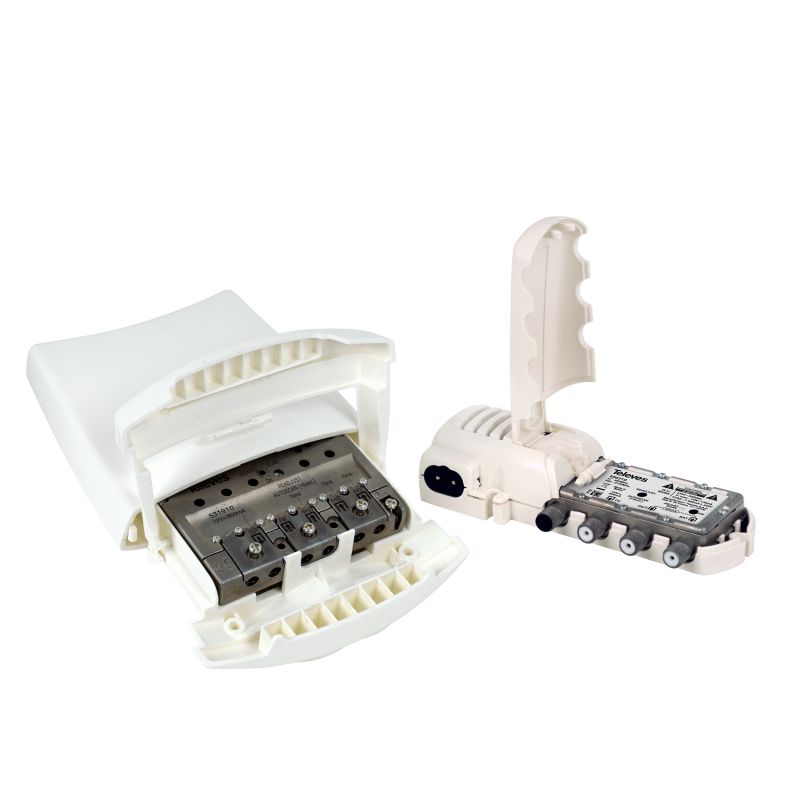

Compact and intelligent amplifier for mast installation with digital channel processing, designed for family-houses installations. Equipped with 3 inputs to amplify terrestrial signals (VHF+UHF) in which each channel can be individually filtered by any of the 32 available programmable filters. In addition, it includes an input for mixing FM radio.

The amplifier is supplied with a 12V (800mA) domestic power supply that is inserted into the coaxial installation and powers it through its output connector.

The autoprogramming function of the amplifier gives this device the ability to program and adjust by itself, simply by pressing a button. In addition, thanks to the Bluetooth antenna included into the PSU, manual programming of the amplifier can be done wirelessly using a smartphone or tablet, with the ASuite application.

RED compliant

Highlights
“All-in-one” device: it combines the functions of several elements of an installation such as filters, mixers and amplifiers, supplying a complete signal distribution under a single coaxial cable
Plug&Play: the amplifier automatically program and adjusts the channel level by pressing the autoprogramming button. In addition, SmartKom automatically powers the antenna in case the signal requires it
Digital processing of the channels: a perfect balance of signal level between different channels is obtained at the output
Automatic gain regulation of signal in each filter (AGC)
Great signal quality: the installation of this device immediately after a Telev?s intelligent antenna prevents signal degradation and results in the best quality
High selectivity digital filters (28dB@1MHz)
SAW filter (Surface Acoustic Wave) included for high rejection of 4G/5G telephone interferences
Indoor power supply included, with a Bluetooth antenna for wireless manual programming of the amplifier
Wireless manual programming (via Bluetooth) through a smartphone or tablet with the ASuite app, avoiding having to physically go to the mast
Main features
Secure configuration: in case of electrical failure SmartKom saves the current configuration, avoiding configuring it again
High output level
EasyF connection system: a reliable and safe system, saving installation time and without the need for additional connectors
LEDs indicators displaying both adjustment and programming status on the amplifier and on the power supply
High shielding chassis, made of Zamak
A white ABS-plastic case is included to provide greater resistance against meteorological factors in its outdoor installation
100% European design and manufacturing: fully automated manufacturing, subject to the most stringent quality controls
Discover
EasyF connection system: simplicity and savings

EasyF is an innovative connection concept where the inner conductor of the coaxial cable is directly inserted in the device, thus improving connection reliability. Thanks to the absence of F connectors, the chassis can be reduced and the connection of two cables secured with a a single screw.

Real time savings: speeding the installation is possible without the need for coaxial cable termination. Furthermore, there is no need for screwing the connectors on the device, which is sometimes difficult when there is little room
Connection reliability: the clamp holding the cables prevents the coaxial cable to come off
Cost savings: no additional connectors are required (neither F nor IEC)
Space optimization: inputs and outputs are always on the same side of the device to prevent coaxial cables from bending, and to make working inside cabinets and register boxes easier
Very easy three-step mounting: only screwing and unscrewing the covers is required to connect both cables:

1. Unscrew the device’s cover to access the connection

2. Insert the previously stripped coaxial cables

3. Close the cover and screw to ensure connection

Learn more about EasyF system reliability

With EasyF, the connection between the coaxial cable and the device is carried out using an automated system for contact insertion of the inner conductor, without any soldering.

Always as new: the device’s operating life increases when the factor of solder wearing out with time is removed
Failure rate reduction: usually produced as a result of cold soldering joints
Electromagnetic behaviour optimization: for high frequencies
Our commitment with environment is reinforced: pollution caused by the welding process is eliminated and production power consumption is reduced
Specifications
SMARTKOM MAST AMPLIFIER
Inputs/Bands 3x VHF+UHF FM
Frequency range MHz 174-230/470-694 87.5-108
Input dynamic range dB?V 40-80 –
Maximum gain dB 45 -1
Gain regulation dB AGC –
Number of filters 32 –
Channels per filter 1 –
Channel/filter programming 5-12 (VHF)
21-48 (UHF) –
Filtered channel level regulation AGC per filter –
Selectivity dB 28/12 @1MHz* >20 @20MHz
Output level dB?V 82 (VHF)
85 (UHF) –
Vout regulation dB?V 57-82 (VHF)
60-85 (UHF) –
Manual regulation dB ?3 –
Noise figure dB 7 (VHF)
6 (UHF) –
Powering inputs Vdc 12 (AUTO/ON/OFF) –
Max. consumption inputs mA 70 –
Max. consumption mA 500 (@12V w/o DC IN)
Protection index IP 23
Operating temperature ?C -5 … +45

*With adjacent channels: 28dB // Without adjacent channels: 12 dB

POWER SUPPLY UNIT Ref. 550210
Inputs TV-MIX SAT-MIX
Frequency range MHz 47 – 862 950 – 2150
Output voltage V 12
Maximum output current mA 800
Insertion loss dB <2 Mains voltage V~ 220-230 Maximum consumption W 14 Maximum current mA 130 Protection index IP 23 Operating temperature ?C -5 ... +45
