Splitter 4 Outputs Connector F 9/8dB of Televes
TDT-SAT distributor 4 outputs F Televes 519504

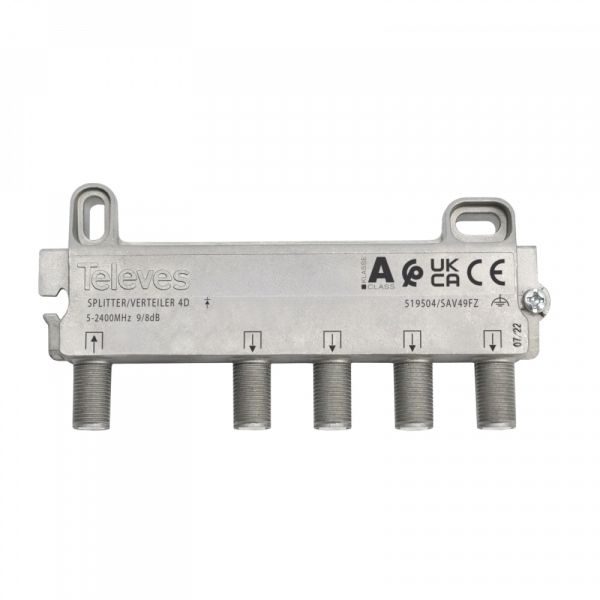

Televes 519504 interior distributor with 4 directions with F-type connectors. This distributor works in the frequency range 5 to 2400 MHz and has an attenuation of 9dB for terrestrial signal and 8dB for satellite.
It is used to distribute the TV signal from a coaxial cable up to 4 sockets in the house. Includes DC current step to power the LNB of the satellite antenna.
Technical Specifications of TDT-SAT Distributor 4 outputs F Televes 519504
?
Frequency range MHz 5 … 2400
Number of outputs ? 4
Inputs/Bands ?
TERR SAT
Through losses dB
9 8
Rejection between outputs dB
> 20 > 20
Voltage max. Vdc 24
Max. current mA 350
DC pass ? Out?In
