Splitter DTT-SAT EasyF 6D 12dB Televes

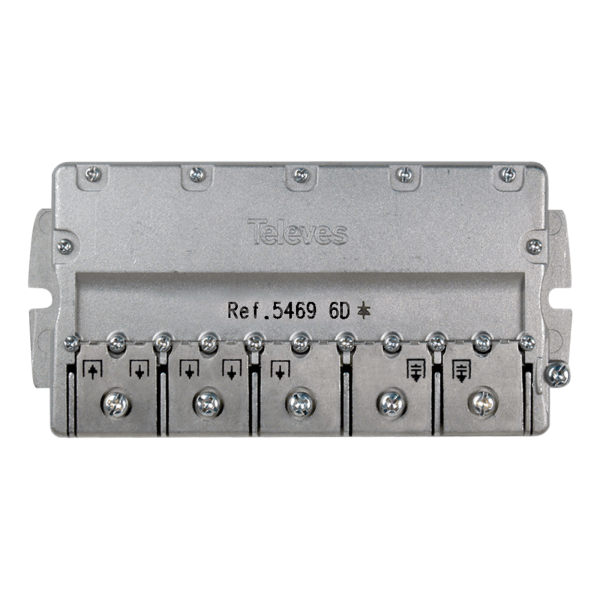

6-way EasyF DTT-SAT splitter 12dB Televes 5469
DTT and Satellite distribution equipment (5-2400Mhz) to distribute the signal of 1 coaxial cable up to 6 TV sockets in the house, with 12dB of attenuation.
Its flange or “EasyF” type connections make the design of the equipment more compact and its installation much easier. The EasyF inputs do not need connectors since the coaxial cable is inserted directly stripped into the distributor and fixed by tightening a screw.
The distributors have DC current pass to power previous equipment of the installation. This equipment is designed to place indoors, suitable for outdoor always inside a Televes 4163 outdoor chest.
Televes distributor for DTT and Satellite with 6 outputs Flange type (EasyF) indoor.
What are the main features of the Televes 5469 splitter?
EasyF connection system: easy to install, savings on mounting
Made of Zamak, high shielding
Outstanding reliability: automated manufacturing using new generation micro-components
Improves through losses
Outstanding electrical behaviour: impulsive noise reduction
Grounding screw provided
DC pass from the outputs to the input
What technical specifications does the Televes 5469 splitter have?
Frequency range MHz 5-2400
10-862 950-2400
Number of outputs 6
Through loss S1/S2 dB 14 14
S3/S4 12 12
S5/S6 13 11
Tap loss >28
DC Pass (max.) mA 300 (in.?out.)
